| Model No |
UNI57508 |
| Type |
Unbiased |
| Note |
Blue Enhanced Response |
| Protective Window |
Quartz |
| Operating Temperature (°C) |
-10 to 60 |
| Responsivity @ 410nm (A/W) |
0.2 |
| NEP (W/ Hz½) |
2.0 x 10-14 |
| Detectivity (cmHz½/W) |
4.5 x 1012 @ 0 V, 410nm |
| Shunt Resistance (MΩ) |
600.00 |
| Active Area (mm²) |
0.81 |

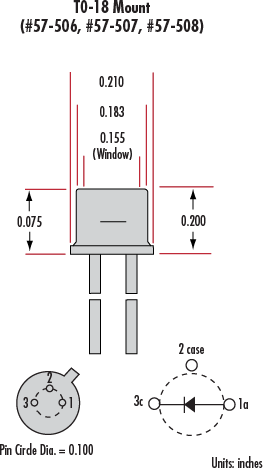

| Package |
TO-18 |
| Rise Time (μs) |
0.02 @ 0 V/50 Ω, 410nm |
| Saturation Current, Isat (mA) |
0.5 |
| Terminal Capacitance (pF) |
60 @ 0 V |
| Typical Applications |
Low light levels, wide spectral bandwidth response |
| RoHS |
Compliant |
