UNI53376

產品型號：UNI53376
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	UNI53376
Type	Unbiased
Note	UV Enhanced Response
Protective Window	Quartz
Operating Temperature (°C)	-10 to 60

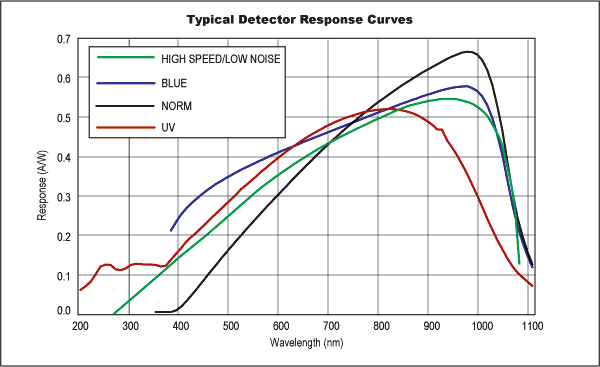

Responsivity @ 254nm (A/W)	0.14
NEP (W/ Hz½)	2.6 x 10^-13
Detectivity (cmHz½/W)	2.72 x 10¹² @ 0 V, 254nm
Active Area (mm²)	50.0
Package	BNC
Length of Leads (inches)	BNC
Outer Diameter (inches)	0.98
Rise Time (μs)	3.5 @ 0 V/50 Ω, 254nm
Saturation Current, Isat (mA)	0.1
Shunt Resistance @ V=-10mV (MΩ)	20.00
Terminal Capacitance (pF)	2500 @ 0 V
Typical Applications	Low light levels, wide spectral bandwidth response
RoHS	Compliant
