ET-4000F

產品型號：ET-4000F
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	ET-4000F
Detector Material	GaAs
Rise Time / Fall Time	<30 ps/<30 ps
Responsivity a	>0.38 A/W at 830 nm
Power Supply	3 VDC
Bandwidth	>12.5 GHz
Active Area Diameter	60 µm
Dark Current	<0.5 nA
Acceptance Angle (1/2 angle)	N/A
Noise Equivalent Power b	45 pW/√Hz at 830 nm
Maximum Linear CW Power	10 mW
Mounting (Tapped Holes)	8-32 or M4
Output Connector	SMA
Fiber Optic Connection c	FC/UPC, SMF28e

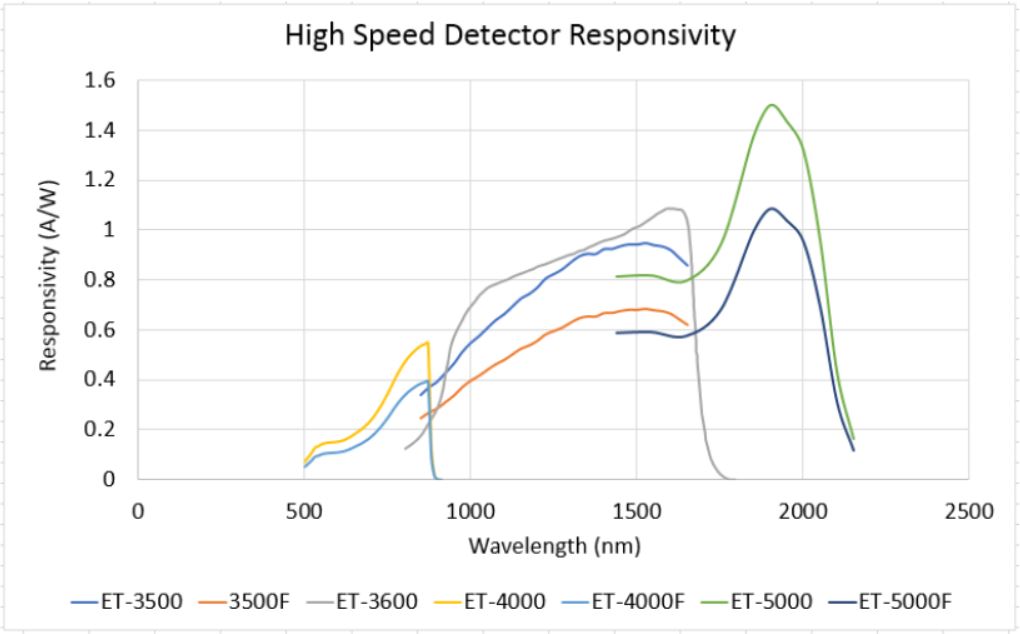

Remark a	Photodetectors have an internal 50 Ω termination. Responsivity data applicable to diode only. Detector output should be determined based on 1/2 the responsivity of that shown in graph.
Remark b	Noise Equivalent Power (NEP) is determined via open circuit output.
Remark c	Multi-mode fiber available. May limit bandwidth.
Remark	Product specifications are subject to change. All products are RoHS compliant.
Note	All specifications apply for a 50 Ω termination unless otherwise noted.
