110-23122-0001

產品型號：110-23122-0001
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	110-23122-0001
Wavelength	1045nm - 1080nm (Wavelength must be specified on order)
Clear Aperture	12 mm
Waveplate	N/A
Peak Transmission *	>95%
Peak Isolation *	>33 dB typical; >27 dB minimum
Rotation	45° + 2/-5°
Damage Threshold *	7 J/cm2 at 10 ns; 600 mJ/cm2 at 8 ps
Storage Temperature	-40 ℃ to 70 ℃
Operational Temperature	10 ℃ to 30 ℃
Isolated Beam Pointing **	<5 mrad

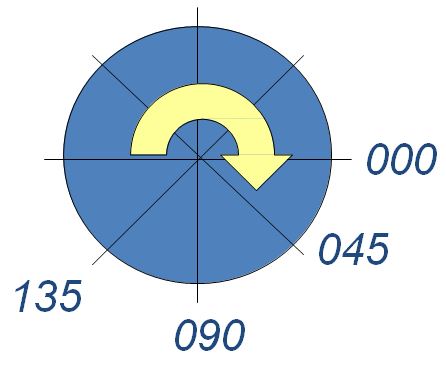

Input Polarizatio	Horizontal / Vertical / 45° (Polarization must be specified on order)
Output Polarization	Horizontal / Vertical / 45° (Polarization must be specified on order)
Remark *	At customer-specified wavelength and temperature
Remark **	Input cube only
Note 1	Escape ports should be used if rejected light is >1 W or 0.15 J/cm² at 10 ns or forward light is >25 W. All stray beams should be properly terminated.
Note 2	Product specifications are subject to change. All products are RoHS compliant.
