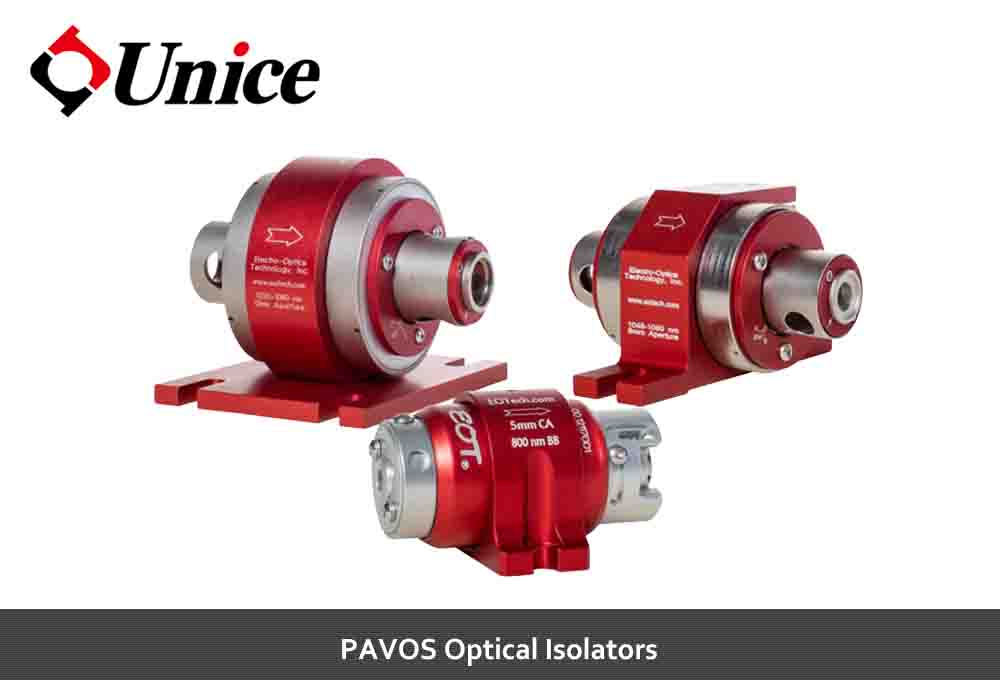

110-21052-0002

產品型號：110-21052-0002
產品說明：

價格(NTD)：$0

產品規格產品說明

Model No	110-21052-0002
Wavelength	1045nm - 1080nm (Wavelength must be specified on order)
Clear Aperture	5 mm
Waveplate	Yes
Peak Transmission	>95% *
Peak Isolation	>33 dB* ; Typical >37 dB
Peak Rotation	45° ± 0.5°
Damage Threshold *	10 J/cm² at 10 ns ; 1 J/cm² at 8 ps ; 1 MW/cm² CW
Storage Temperature	-40 ℃ to 70 ℃
Factory Tunable Temperature	10 ℃ to 30 ℃
Isolated Beam Pointing **	<5 mrad
Input Polarization	Horizontal / Vertical / 45° (Polarization must be specified on order)
Output Polarization	Horizontal / Vertical / 45° (Polarization must be specified on order)
Remark *	At customer-specified wavelength and temperature
Remark **	Input cube only
Note 1	Escape ports should be used if rejected light is >1 W or 0.15 J/cm² at 10 ns or forward light is >25 W. All stray beams should be properly terminated.
Note 2	Product specifications are subject to change. All products are RoHS compliant.
