S1-0248

Model：S1-0248
Description：

The 1L60 PSD functions according to the Lateral Effect Photodiode principle. It is an analogue device and therefore displays excellent position resolution. The resolution is determined by the system signal-to-noise ratio. The 1L60 is operated in the biased mode.

Price(USD)：$0

Specification Content

Model No	S1-0248
PSD Type	1L60_SU34
Active area (mm²)	60x3
Leakage current (nA)	150
Noise Current pA/√Hz	0.4
Capacitance (pF)	135
Rise time (10-90%)(μs)	4.5

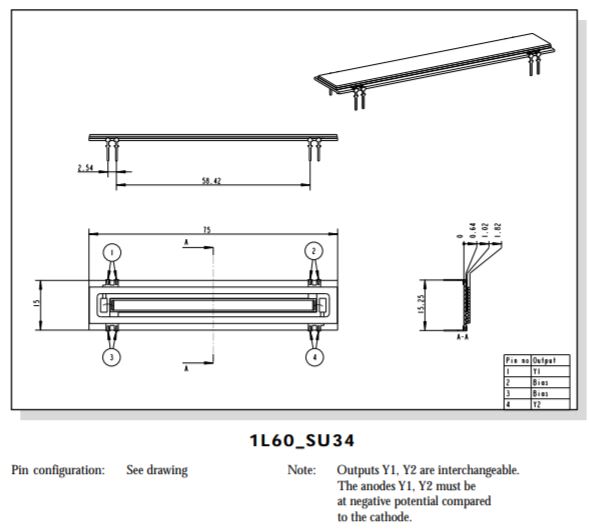

Package	Substrate
Position non-linearity (%)	±0.1
Detector resistance (kohm)	50
Thermal drift (ppm/°C typical)	20
Bias voltage (V)	5 - 20
Maximum operating temp. (°C)	70
Maximum storage temp. (°C)	100
