S1-0007

Model：S1-0007
Description：

The 1L30 PSD functions according to the Lateral Effect Photodiode principle. It is an analogue device and therefore displays excellent position resolution. The resolution is determined by the system signal-to-noise ratio. The 1L30 is operated in the biased mode.

Price(USD)：$0

Specification Content

Model No	S1-0007
PSD Type	1L30_SU2
Active area (mm²)	30x4
Leakage current (nA)	150
Noise Current pA/√Hz	0.7
Capacitance (pF)	90
Rise time (10-90%)(μs)	1

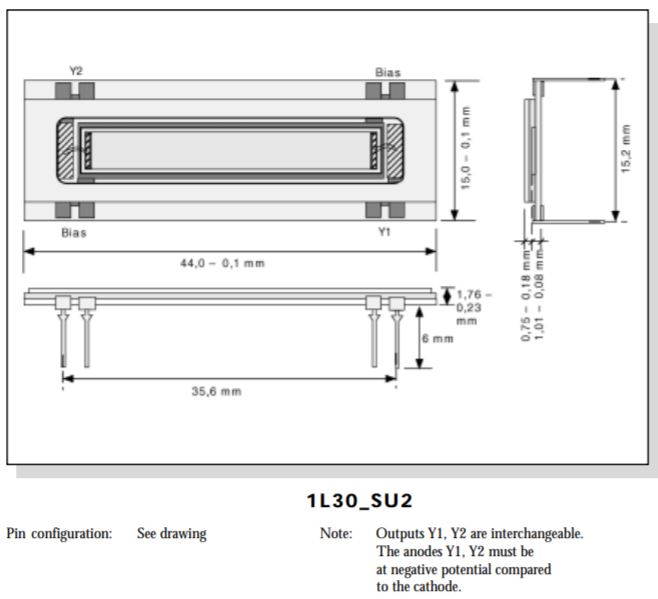

Package	Substrate
Position non-linearity (%)	±0.1
Detector resistance (kohm)	50
Thermal drift (ppm/°C typical)	20
Bias voltage (V)	5 - 20
Maximum operating temp. (°C)	70
Maximum storage temp. (°C)	100
