S1-0034

Model：S1-0034
Description：

The 1L30 UV is optimised for use in the UV wave length region 200 to 400nm. As standard PSDs it works according to the Lateral Effect Photodiode principle. It is an analogue device and displays excellent position resolution. The resolution is determined by the system signal-to-noise ratio. The 1L30 UV is operated in the biased mode.

Price(USD)：$0

Specification Content

Model No	S1-0034
PSD Type	1L30UV_SU2
Active area (mm²)	30x4
Leakage current (nA)	150
Noise Current pA/√Hz	0.5
Capacitance (pF)	90
Rise time (10-90%)(μs)	1

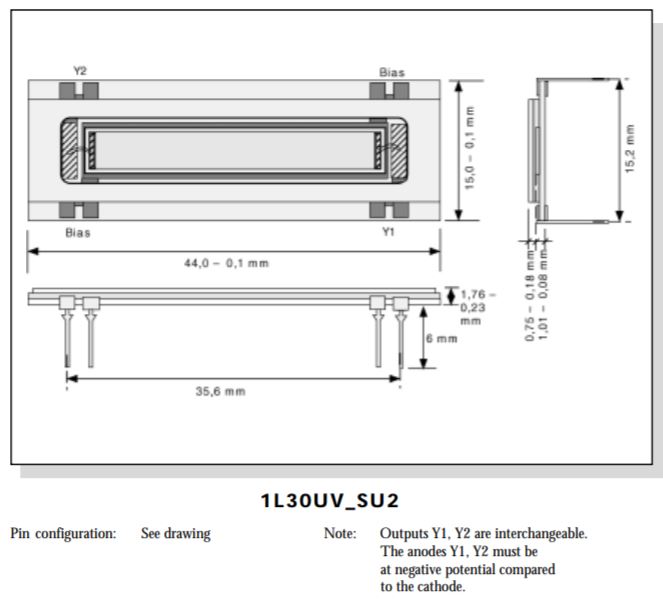

Package	Substrate
Position non-linearity (%)	±0.1
Detector resistance (kohm)	50
Thermal drift (ppm/°C typical)	20
Bias voltage (V)	5 - 20
Maximum operating temp. (°C)	70
Maximum storage temp. (°C)	100
