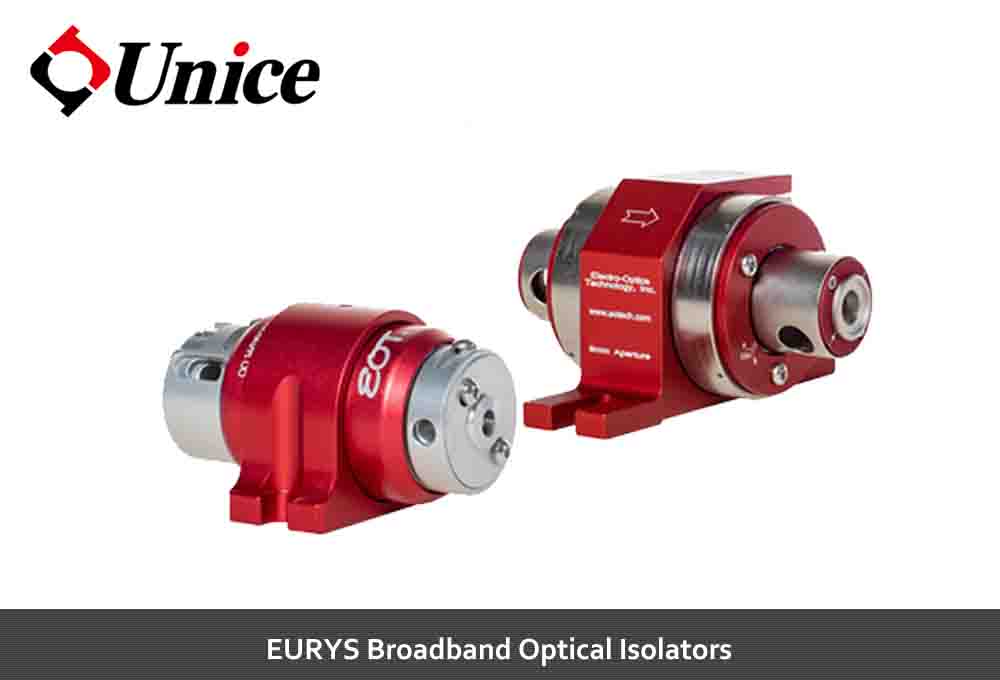

110-22051-0002

Model：110-22051-0002
Description：

Price(USD)：$0

Specification Content

Model No	110-22051-0002
Center Wavelength	800 nm
Clear Aperture	5mm
Waveplate	Yes

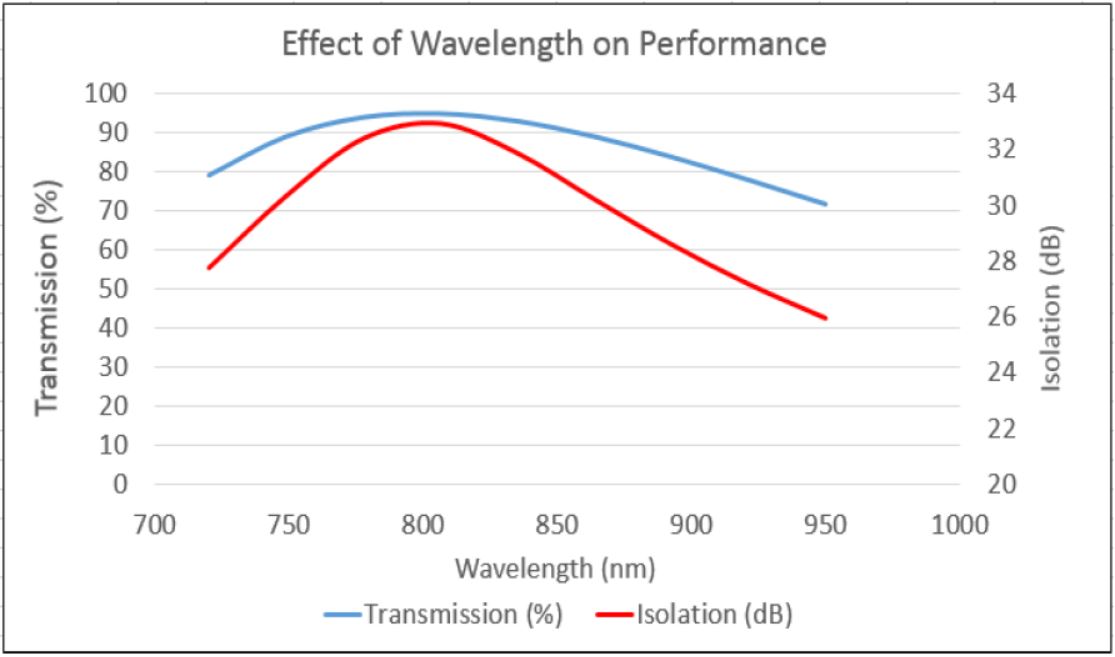

Spectral Range	720 nm to 950 nm
Transmission at 22 °C	>92%
Isolation at 22 °C	>33 dB
Damage Threshold	>3.4 J/cm² at 10 ns ; 1 J/cm² at 8 ps
Input Polarization	Horizontal / Vertical (Polarization must be specified on order)
Note 1	Escape ports should be used if rejected light is >1 W or 0.15 J/cm2 at 10 ns or forward light is >25 W. All stray beams should be properly terminated.
Note 2	Product specifications are subject to change. All products are RoHS compliant.
