PXLK-1 N-BK7 Plano-Convex Singlet Lens Kit, Diameter 25.4mm, Uncoated

PXLK-1

Model：PXLK-1
Description：

Price(USD)：$500

Content

PXLK-1 Included :

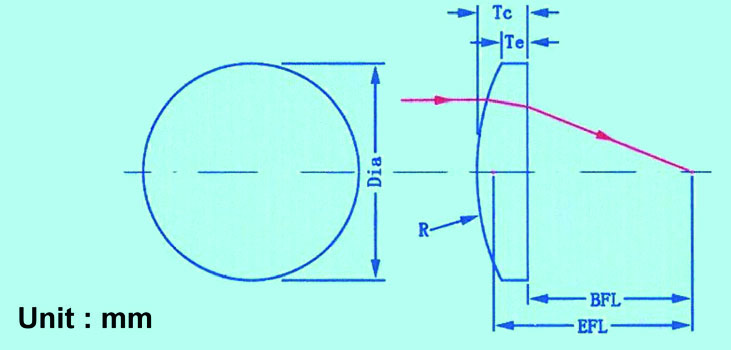

Part#	Diameter (mm)	Effective Focal Length (mm)	Radius Of Curvature (mm)	Center Thickness (mm)	Edge Thickness (mm)	Back Focal Length (mm)
UA1951K	25.4	25.40	13.07	11.70	1.80	17.68
UA1027K	25.4	35.00	18.01	7.20	2.00	30.25
UA1131K	25.4	50.00	25.73	5.30	2.00	46.5
UA1608K	25.4	75.00	38.50	4.10	2.00	72.3
UA1509K	25.4	100.00	51.47	3.60	2.00	97.62
UA1986K	25.4	125.00	64.33	3.30	2.00	122.82
UA4133K	25.4	150.00	77.20	3.10	2.00	147.95
UA1708K	25.4	200.00	102.93	2.80	2.00	198.15
UA1461K	25.4	250.00	128.66	2.60	2.00	248.28
UA1484K	25.4	300.00	154.40	2.50	2.00	298.35
UA1172K	25.4	400.00	205.86	2.40	2.00	398.42
UA1908K	25.4	500.00	257.33	2.30	2.00	498.48
UA1978K	25.4	750.00	385.99	2.20	2.00	748.55
UA1464K	25.4	1000.00	514.65	2.20	2.00	998.55
