Product name : UV Fused Silica High Power Thin Film Plate Polarizers
Description :
● Brewster angle polarizers
● 200 : 1 extinction ratio
● High power use

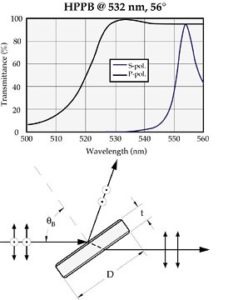

These plate polarizers are intended for use at the Brewster angle of incidence. The natural polarization which takes place at this angle is enhanced by the deposition of a coating to separate the s and p peak transmittance. They provide a high extinction ratio of 200: 1 and are suitable for high power use.
Specification
| Material | UV grade Fused Silica |
| Surface Quality | 10/5 |
| Surface Flatness | < λ / 10 @ 633 nm |
| Wedge | < 3 arc min |
| AR Coating | R < 0.25% |
| Absorption | Negligible |
| Dimension Tolerance | < + 0.00 / – 0.20 mm |
| Clear Aperture | > 85% of central diameter |
 |
|
| Model | Description | Dimension D (mm) | Wavelength (nm) | Price(USD) | Quantity | |
|---|---|---|---|---|---|---|
| 0 | HPPB-2506U-248 | High Power Thin Film Plate Polarizer | 25.4 | 248 | - | |
| 1 | HPPB-2506U-266 | High Power Thin Film Plate Polarizer | 25.4 | 266 | - | |
| 2 | HPPB-2506U-308 | High Power Thin Film Plate Polarizer | 25.4 | 308 | - | |
| 3 | HPPB-2506U-355 | High Power Thin Film Plate Polarizer | 25.4 | 355 | - | |
| 4 | HPPB-5009U-248 | High Power Thin Film Plate Polarizer | 50.8 | 248 | - | |
| 5 | HPPB-5009U-266 | High Power Thin Film Plate Polarizer | 50.8 | 266 | - | |
| 6 | HPPB-5009U-308 | High Power Thin Film Plate Polarizer | 50.8 | 308 | - | |
| 7 | HPPB-5009U-355 | High Power Thin Film Plate Polarizer | 50.8 | 355 | - | |
| 8 | HPPB-28x14x03U-248 | High Power Thin Film Plate Polarizer | 28.6x14.3 | 248 | - | |
| 9 | HPPB-28x14x03U-266 | High Power Thin Film Plate Polarizer | 28.6x14.3 | 266 | - | |
| 10 | HPPB-28x14x03U-308 | High Power Thin Film Plate Polarizer | 28.6x14.3 | 308 | - | |
| 11 | HPPB-28x14x03U-355 | High Power Thin Film Plate Polarizer | 28.6x14.3 | 355 | - |
