Product name : AR Coating 350 ~ 700nm Mounted Aspherical Lenses
Description :
● Cost-effective solution for mounting Geltech aspheres
● Easy to handle assembly
● Durable stainless steel housing
● Threaded extension for easy mounting
Specification
Manufacturing Tolerances
| Parameter | Typical Tolerance |
|---|---|
| Focal Length | ± 1% |
| Center Thickness (CT) | ± 0.025mm |
| Outer Diameter (OD) | ± 0.015mm |
| Wedge (arcmin) | 4 |
| Power/Irregularity (fringes) | 3/1 |
| Surface Roughness | 15nm |
| Surface Quality (scratch/dig) | 40/20 |

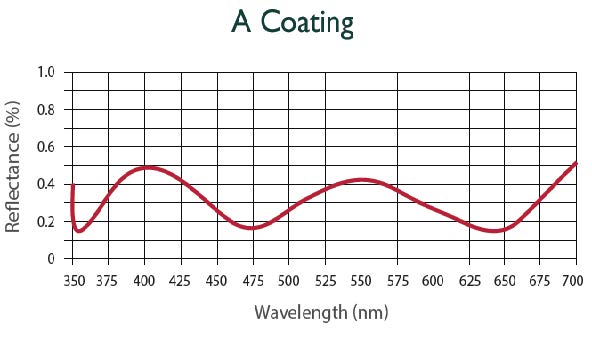

| AR Coating | 350 ~ 700nm ( Reflectivity Rmax ≦ 0.50% ) |
 |
|
Holder General Specifications and Tolerances
| Holder Material | Stainless Steel 304 |
| Holder Outer Diameter | ± 0.025mm |
| Holder Inner Diameter | ± 0.100mm |
| Holder Length | ± 0.100mm |
| Length of Threaded Section | ± 0.100mm |
| Model | Description | Price(USD) | Quantity | |
|---|---|---|---|---|
| 0 | L354140MT-A | Mounted Glass Aspheric Lenses, EFL: 1.45mm, NA: 0.58, AR Coating 350 ~ 700nm | - | |
| 1 | L355390MT-A | Molded Glass Standard Aspheric Lenses, EFL: 2.75mm, NA: 0.55, AR Coating 350 ~ 700nm | - | |
| 2 | L355392MT-A | Molded Glass Standard Aspheric Lenses, EFL: 2.8mm, NA: 0.6, AR Coating 350 ~ 700nm | - | |
| 3 | L355660MT-A | Molded Glass Standard Aspheric Lenses, EFL: 2.976mm, NA: 0.52, AR Coating 350 ~ 700nm | - | |
| 4 | L354430MT-A | Molded Glass Standard Aspheric Lenses, EFL: 5mm, NA: 0.15, AR Coating 350 ~ 700nm | - | |
| 5 | L354560MT-A | Molded Glass Standard Aspheric Lenses, EFL: 13.86mm, NA: 0.18, AR Coating 350 ~ 700nm | - |
