| Wavelength |
1064 nm |

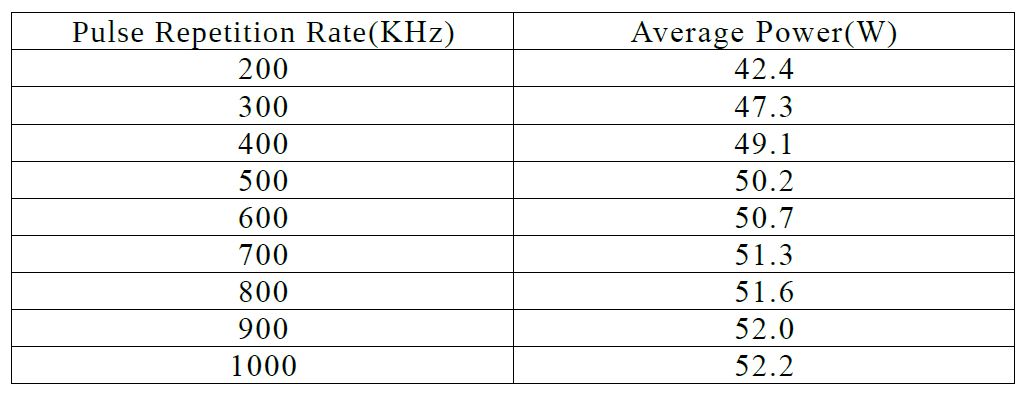

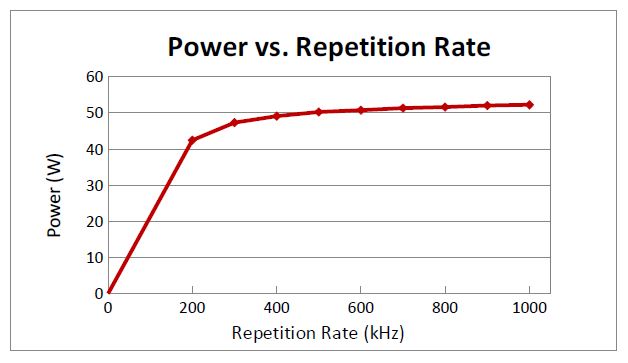

| Max Average Power |
> 50 W |

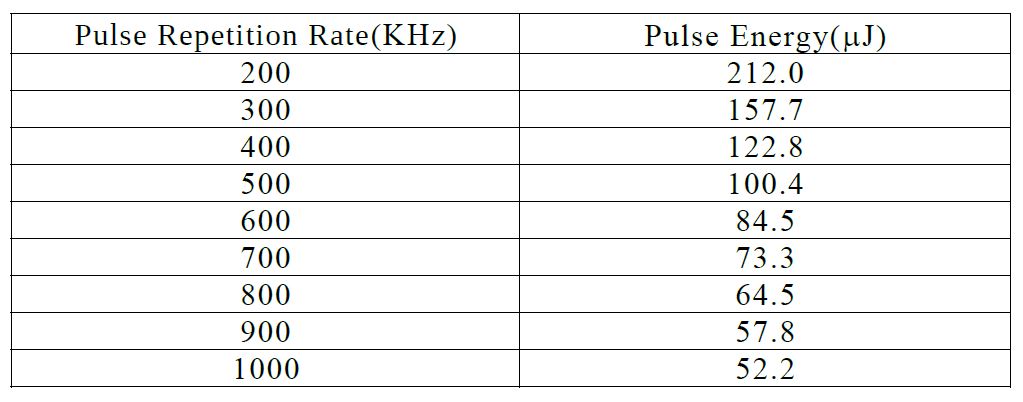

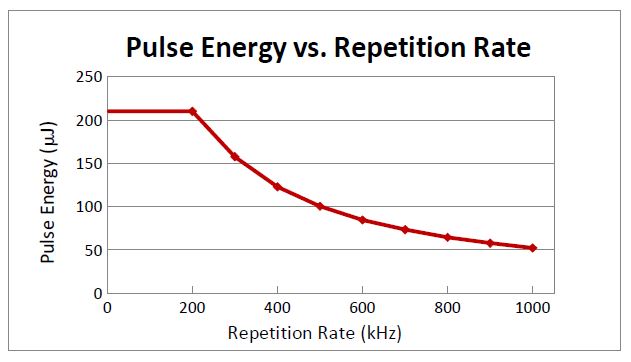

| Max Pulse Energy* |
> 210 μJ |
| Pulse Repetition Rate |
0 – 1.2 MHz |
| Spatial Mode |
TEM00 (M2<1.3 ) |
| Pulse Duration |
< 10 ps |
| Pulse-to-Pulse Stability(RMS, over 5 mins) |
~ 1% |
| Average Power Stability(RMS, over 8 hours) |
< 0.5% |
| Polarization Ratio |
>100:1 |
| Beam Diameter |
~ 2.0 mm |
| Beam Divergency Angle(Full) |
< 1 mrad |
| Beam Circularity |
> 85 % |
| Beam Pointing Stability |
< 50 μrad/K |
| Beam Height |
~ 106.68mm |
| Warm Up Time |
< 15 mins from chiller start |
| Dimension(Laser Only, not including fixing foot and removable handle) |
381mm x 559mm x 152mm |
| Dimension(Whole Unit, including handles) |
381mm x 654mm x 152mm |
| Weight |
< 36 kg |
| Electricity Power Requirement |
AC 110~240V(50～60 Hz), 700 W (excluding chiller) |
| Cooling Capacity Requirement |
> 700W @ Env Temperature |
| Coolant Requirement |
Avoid coolants that are corrosive to metals (e.g., do not use de-ionized water; can use distilled water) |
Operating Environment
Requirement |
Temperature +15 ~ 32 °C，
Relative Humidity < 65%，Non-Condensing |
| I/O Interfaces |
BNC x 5，DB9 x 3，DB15，DB25，Ethernet，SFP |
| I/O Interface Signals Description |
BNC TTL Input：
Gate (Control Laser Beam On / Off)
Trigger(Control the timing of output pulses)
BNC Analog Input：
Ext-Mod (Control the average output power)
BNC TTLOuput：
Sync (Synchronized with output laser pulses)
BNC Analog Output：
Custom (For user function customization)
Communication Interfaces：Two independent RS232 interfaces，One 10/100/1000 Mbps Ethernet Interface (Can be used for laser control, remote diagnosis and system firmware upgrade)，One 1~6.25 Gbps SFP High Speed Fiber Communication interface (Can be used to synchronize multiple laser units for mass production)
In addition: Four pairs of Open/Close type interlock interface、Eight TTL Input Signal Interface、Twelve TTL Output Signal Interface; All these interfaces can be used for user function customization and system integration |
| Laser Controlling Interfaces |
Operating Panel Control，RS232 command
control，External TTL or Analog signal control，Ethernet
communication control |
| * To avoid unintensional damage to user optics, our standard Dps Series products do not provide pulses with larger engergy. But for specific user applications we can provide customized pulses up to 500uJ. Please contact us if you are in such needs . |
