Product name : Compact Multi Mode Diode Lasers - 647~830nm
Description :
Key Performance Features
● VBG® Wavelength Stabilized
● Compact Single Box Design
● Low Power Consumption
● Several Wavelengths Available
● Digital & Analog Control Functions
● Free-space or Fibered Outputs
Applications
● Raman Excitation Source
● Particle Sizing & Counting
● Flow Cytometry
● Real-time Process Control
● Metrology
● LIDAR
Specification
| Operating Specifications | ||
| Output Power | 100 – 600mW | |
| Spectral linewidth (typical) | 1.3 cm-1 | |
| Wavelength stability (max) | +/- 5 pm | |
| ASE suppression (typical) | 40 dB | |
| Optical power stability (typical) | < 1% pk to pk | |
| Noise (10Hz–10MHz) | < 0.25 % rms | |
| Modulation-analog (typical) | NA | |
| Modulation-digital (typical) | NA | |
| Power adjustability | 5 – 100 % | |
| Free Space Optical Specifications | ||
| Beam quality (m2 typical) vertical | 1.2 | |
| Beam quality (m2 typical) horizontal | NA | |
| Beam diameter horizontal | 1 mm | |
| Beam diameter horizontal | 5 mm | |
| Beam divergence - vertical | 1 deg | |
| Beam divergence - horizontal | 5 deg | |
| Polarization ratio | 100:1 Liner | |
| Electrical Specifications | ||
| DC input (max) | 2A @ 5V | |
| Warm-up time (typical) | 5/10 sec | |
| Power consumption (typical/max) | 6W / 9W | |
| Interface | USB & 10-pin I/O connectors | |
| Case temperaturea | -20 - 50 °C | |
| Humidity (non-condensing) | 5 - 95 % | |
| Dimensions | 76.2L x 63.5W x 22H mm | |
| Weight | 134 g | |
| a Must be operated on a heat sink | ||

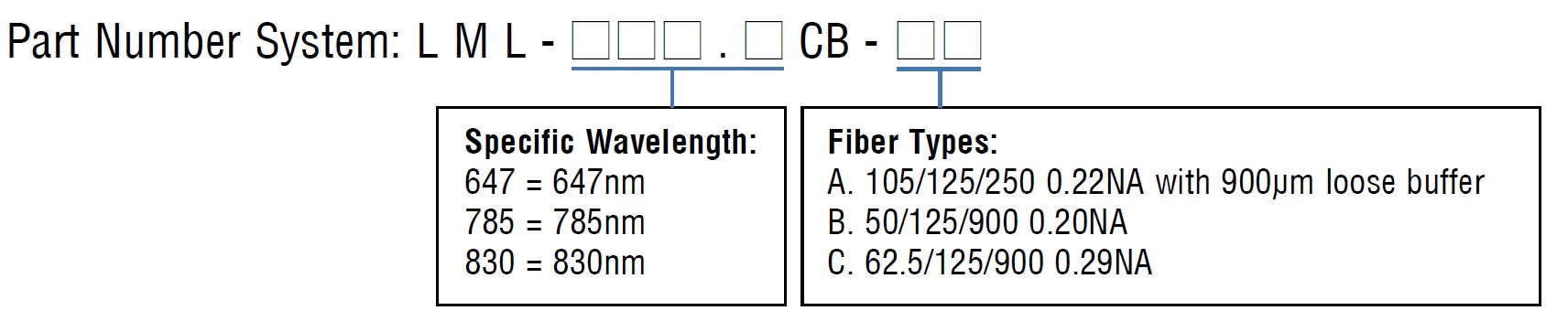

Ordering Information
| Part Number | Center Wavelength | Fiber Type | Output Power | Connector |
|---|---|---|---|---|
| LML-647.0CB-01 | 647 +/- 0.5nm | A | 200 mW | SMA905 |
| LML-647.0CB-02 | 647 +/- 0.5nm | A | 200 mW | FC/APC |
| LML-647.0CB-03 | 647 +/- 0.5nm | A | 200 mW | FC/APC |
| LML-647.0CB-04 | 647 +/- 0.5nm | A | 200 mW | FC/PC |
| LML-647.0CB-05 | 647 +/- 0.5nm | A | 200 mW | FC/APC |
| LML-647.0CB-06 | 647 +/- 0.5nm | C | 200 mW | FC/APC |
| LML-647.0CB-FS | 647 +/- 0.5nm | - | 300 mW | - |
| LML-785.0CB-01 | 785 +/- 0.5nm | A | 500 mW | SMA905 |
| LML-785.0CB-02 | 785 +/- 0.5nm | A | 500 mW | FC/APC |
| LML-785.0CB-03 | 785 +/- 0.5nm | A | 500 mW | FC/APC |
| LML-785.0CB-04 | 785 +/- 0.5nm | A | 500 mW | FC/PC |
| LML-785.0CB-05 | 785 +/- 0.5nm | A | 500 mW | FC/APC |
| LML-785.0CB-06 | 785 +/- 0.5nm | C | 500 mW | FC/APC |
| LML-785.0CB-FS | 785 +/- 0.5nm | - | 600 mW | - |
| LML-830.0CB-01 | 830 +/- 0.5nm | A | 500 mW | SMA905 |
| LML-830.0CB-02 | 830 +/- 0.5nm | A | 500 mW | FC/APC |
| LML-830.0CB-03 | 830 +/- 0.5nm | A | 500 mW | FC/APC |
| LML-830.0CB-04 | 830 +/- 0.5nm | A | 500 mW | FC/PC |
| LML-830.0CB-05 | 830 +/- 0.5nm | A | 500 mW | FC/APC |
| LML-830.0CB-06 | 830 +/- 0.5nm | C | 500 mW | FC/APC |
| LML-830.0CB-FS | 830 +/- 0.5nm | - | 600 mW | - |
| Model | Description | Price(USD) | Quantity | |
|---|---|---|---|---|
| 0 | NIR Wavelength Compact Multi Mode Diode Laser | Please contact us directly ! | - |
