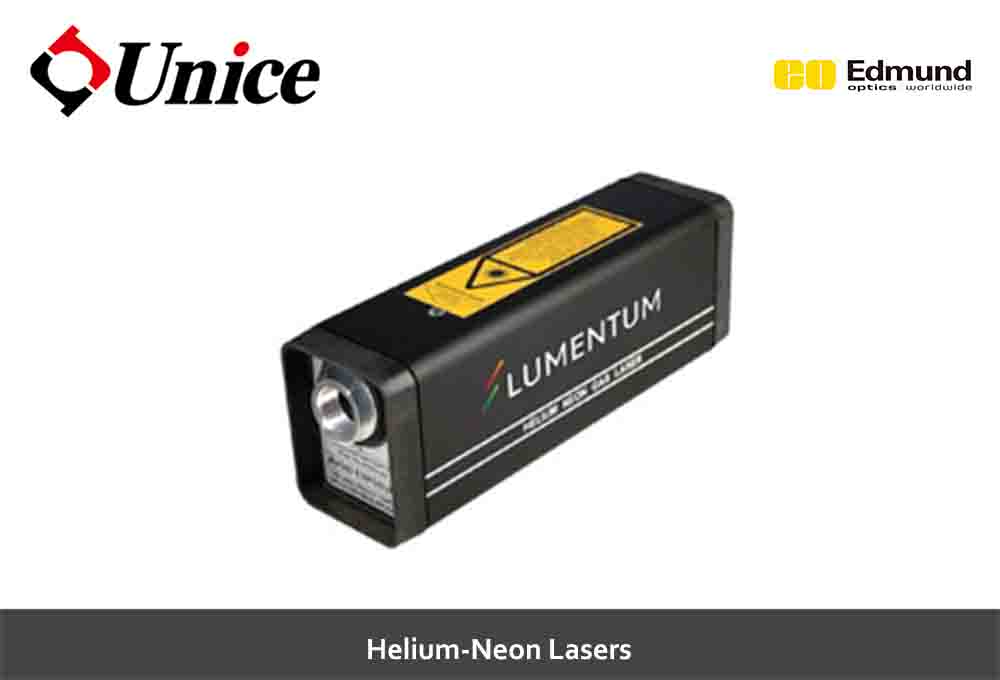

UNI61360

Model：UNI61360
Description：

Price(USD)：$0

Specification

Model No	UNI61360
Wavelength (nm)	632.8
Output Power (mW)	0.5
Beam Diameter (mm)	0.48
Beam Divergence (mrad)	1.7
Polarization	500:1
Beam Diameter Tolerance (%)	±3
Beam Divergence Tolerance (%)	±3
Color	Red
Dimensions (inches)	2.50 x 2.00 x 7.00
Input Voltage (V)	220.00
Laser Class - CDRH	II
Longitudinal Mode Spacing, Nominal (MHz)	1090.00
Minimum Output Power, TEM00 (mW)	0.5
Operating Lifetime (hours)	12,000
Output Type	Free Space
Power Stability (%)	±2.5
RMS Noise	30 Hz - 10 MHz: 1.0%
Spatial Mode	>95% TEM00
Warm-Up Time (minutes)	10.00
Weight (lbs)	1.20
RoHS	Compliant
