Model：MBL1500A
Description：
Description：
-
MBL1500A controller series have special design for supply laser diode in Butterfly package in both Type 1 and Type 2 14-pin Laser Diodes. Controller include high stability current source (0,01mА) for laser diode, TEC for precision maintaining the temperature on peiltier element (TEM) (0,01 °C) and Mount with Azimuth ZIF Socket for Butterfly LD. These controllers are an excellent choice for laboratory test set-ups and has all the necessary protections for safe operation with laser diodes. These devices are an excellent choice for laser diode from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa, Lumentum inc and etc.
Key Features

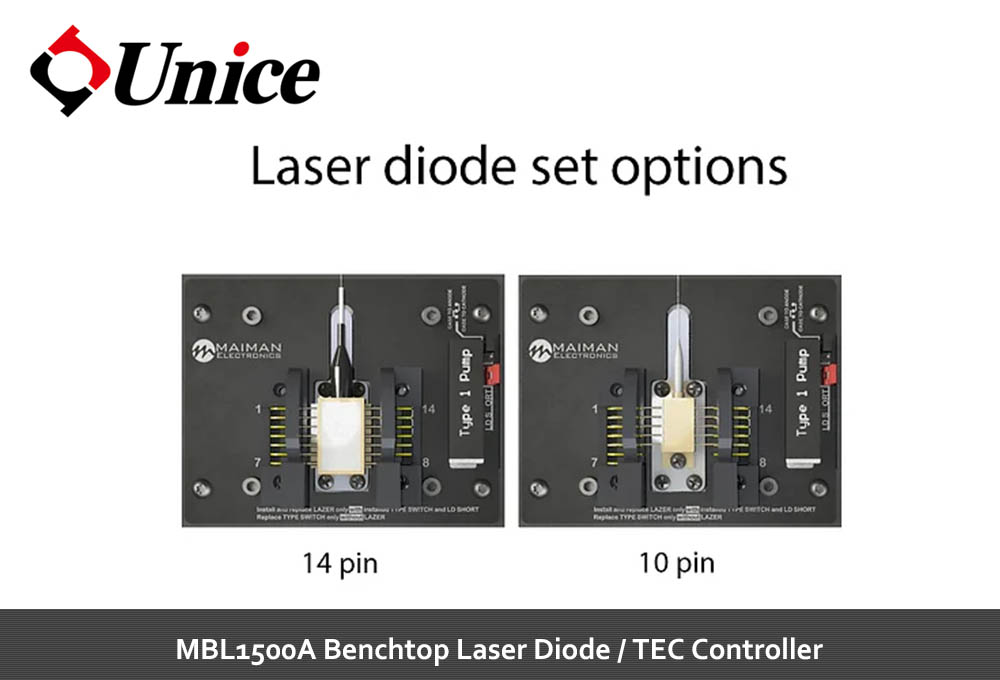

● All-in-One Current Source, Temperature Controller and Mount with Azimuth ZIF Socket for Butterfly LD

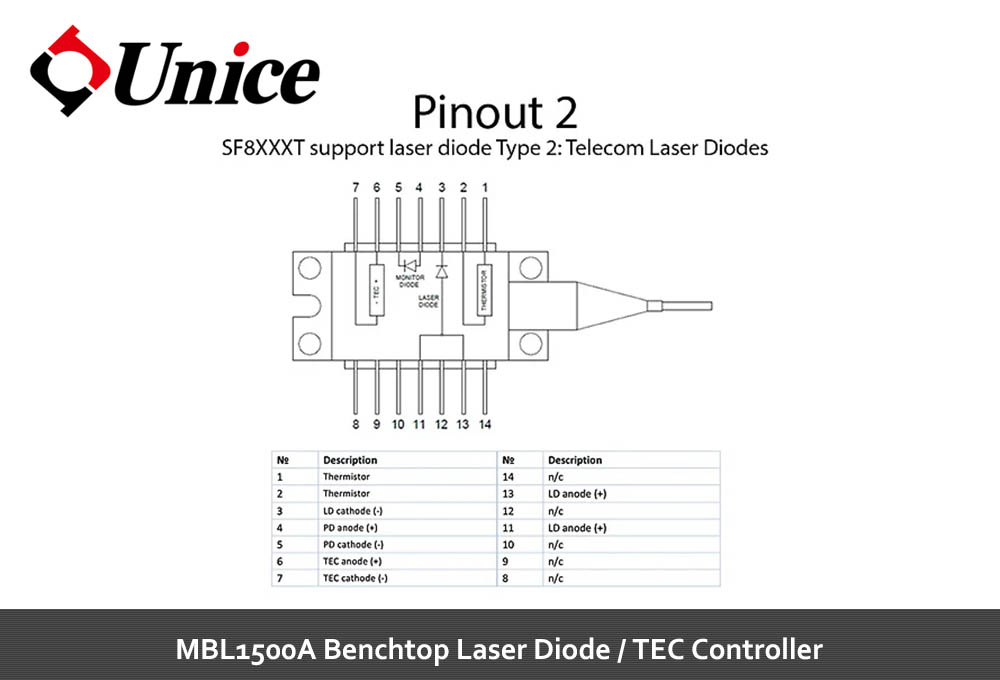

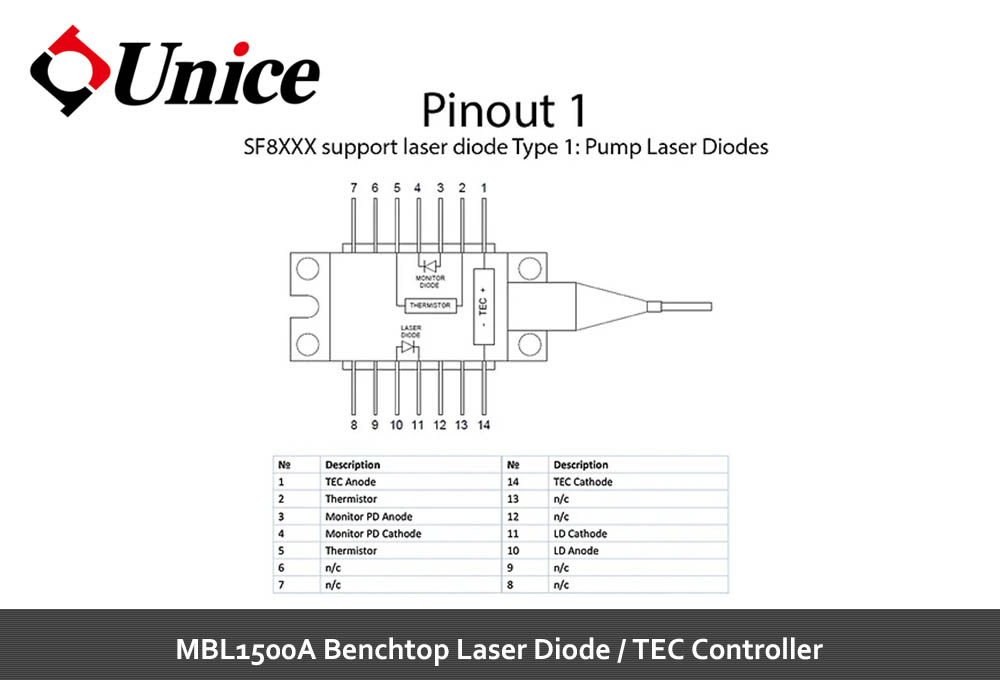

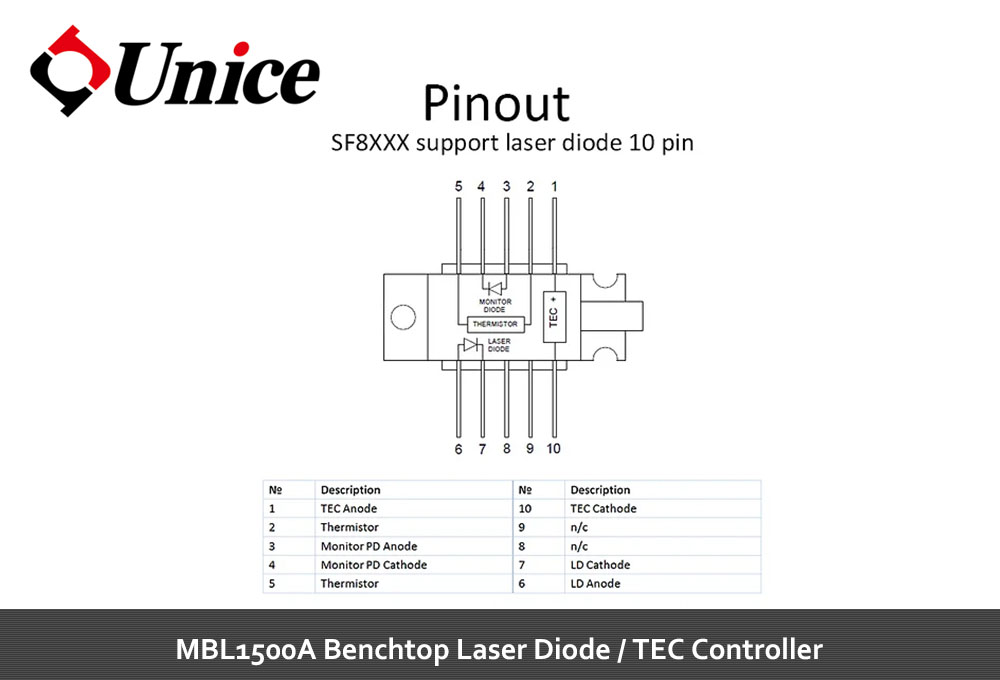

● Compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode

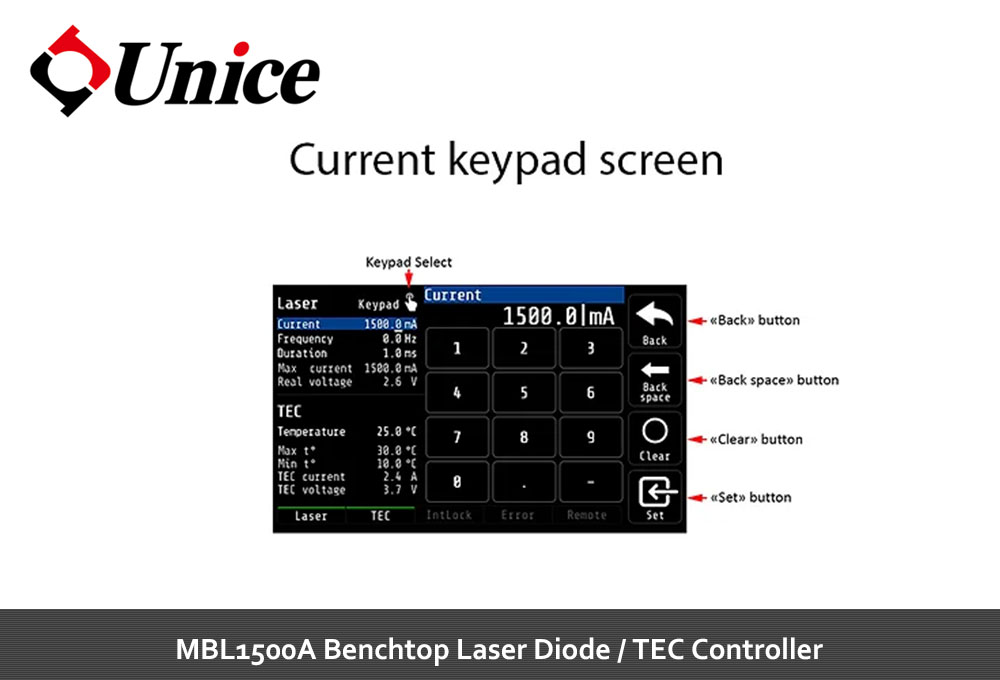

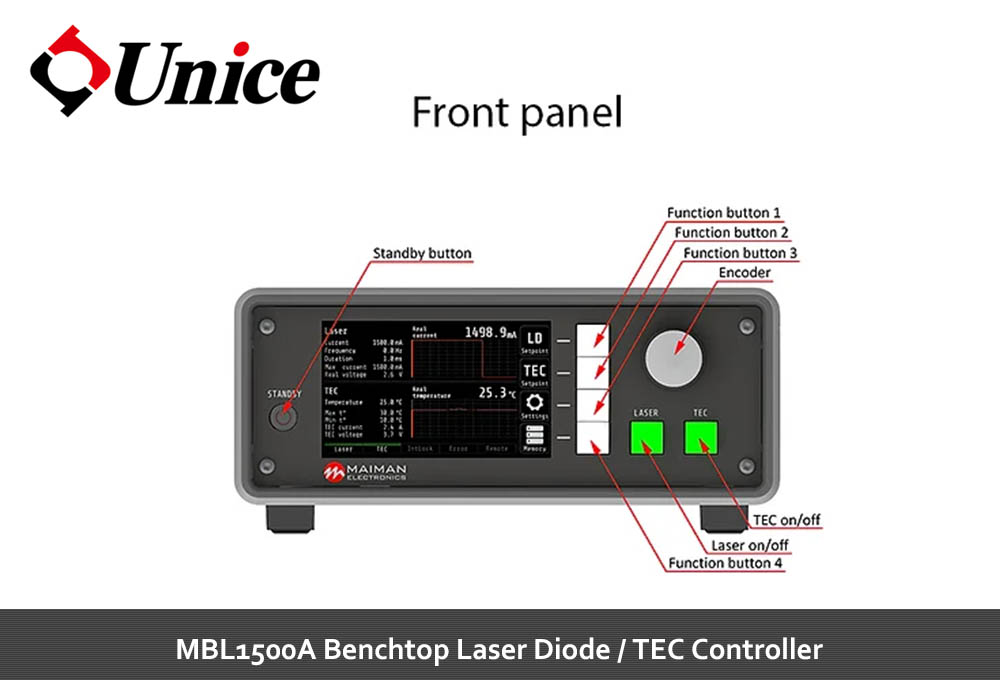

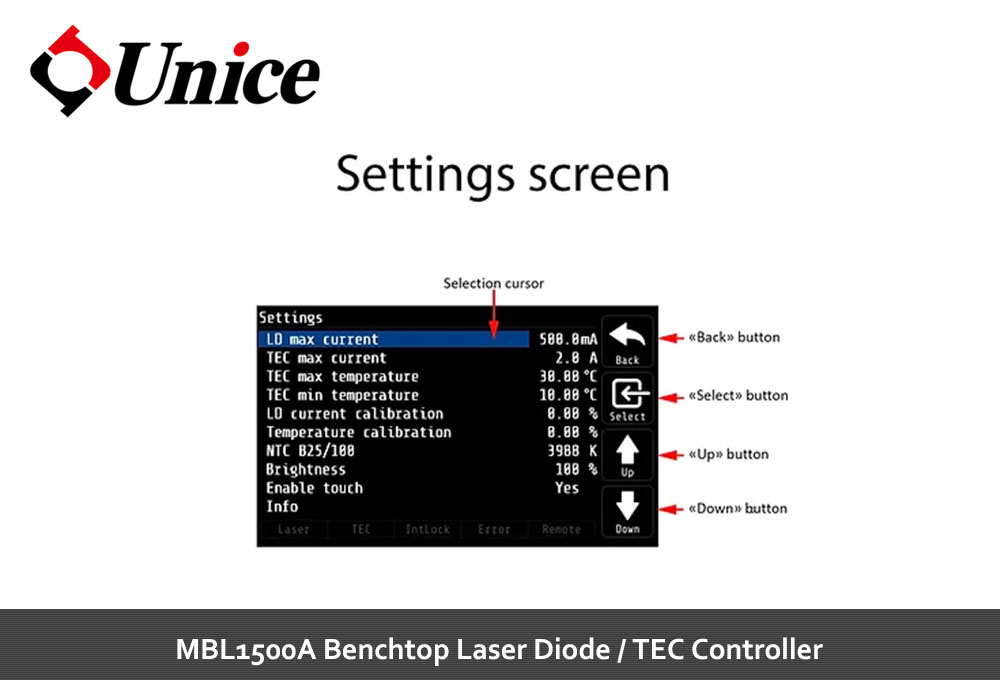

● Controlled locally with Touch Screen or Buttons
● Controlled remote over USB (Software and Communication Protocol included)
● Integrated PID controller, doesn't require setup
● Soft-Start Current Ramp, Current Protection, Temperature Protection for Laser Diode

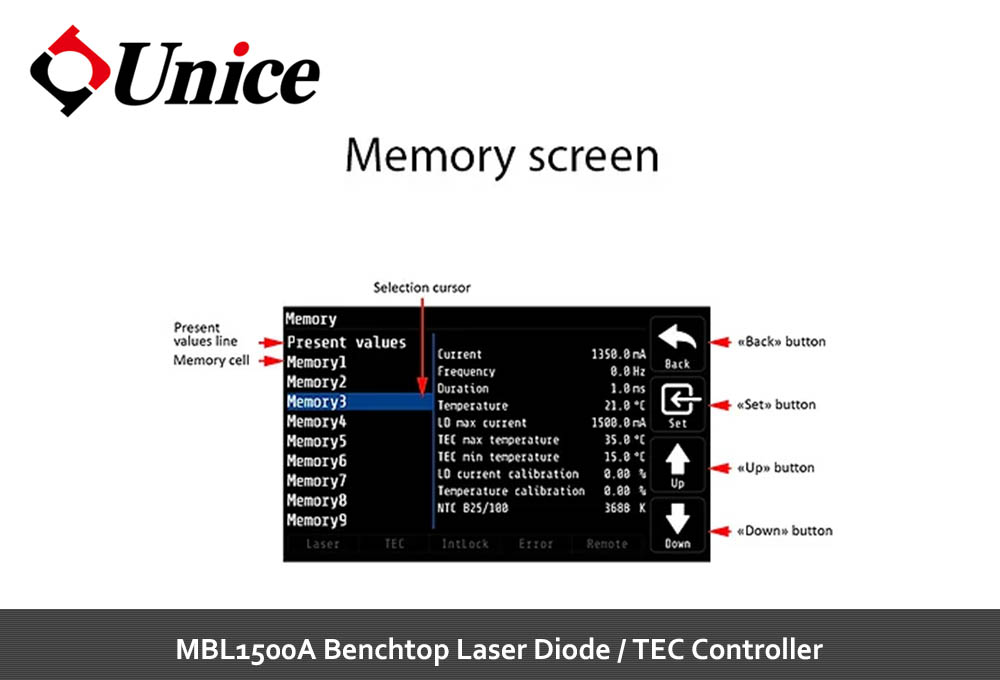

● Option to save 9 presetting
● Current stability < 0.1%
● Ability to set Limits

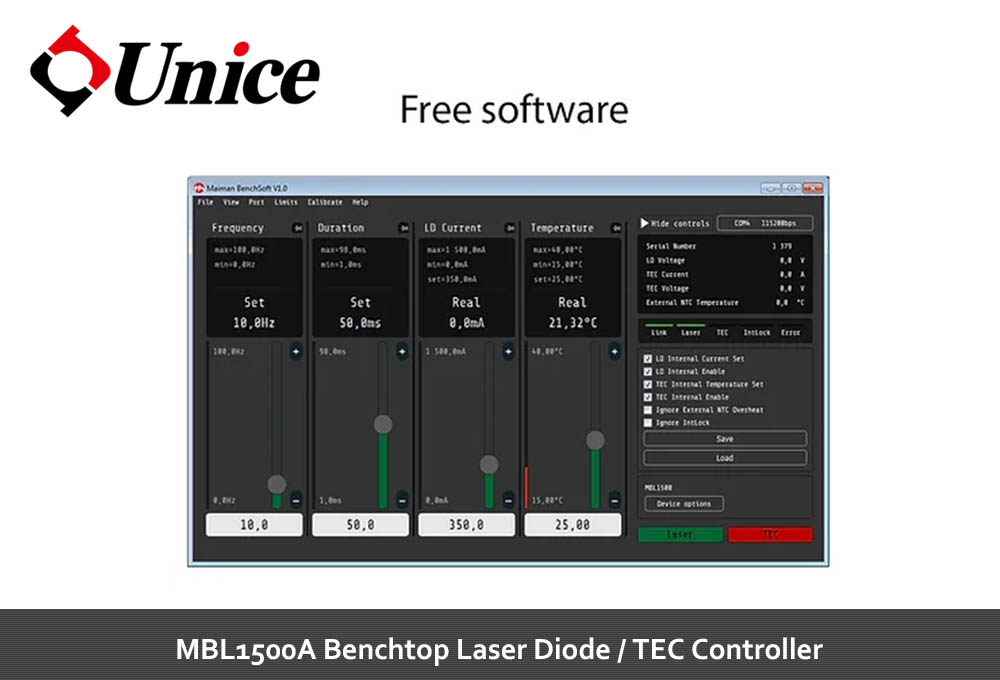

● Free software
