F80(120)A-CM-17

F80(120)A-CM-17

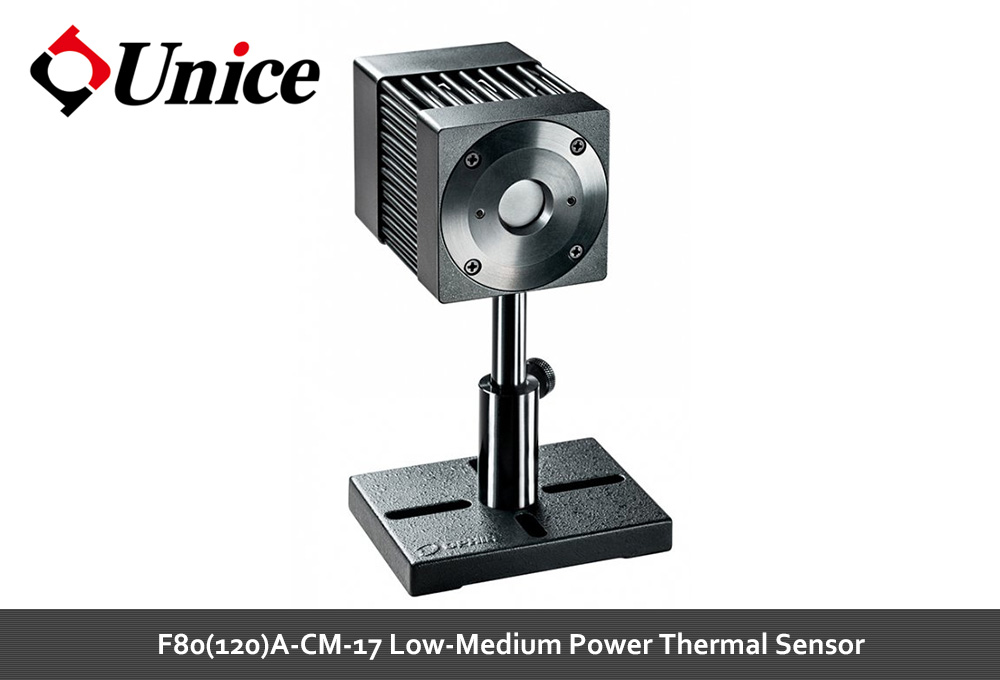

Model：F80(120)A-CM-17
Description：

Auto CAD PDF F80(120)A-CM-17 Datasheet Power Sensors Catalog

Price(USD)：$0

Specification Video

Model No	F80(120)A-CM-17
Absorber Type	CM
Aperture Size	Ø17.5mm
Spectral Range	0.248μm-9.4μm
Minimum Power	100mW
Maximum Average Power	80W
Maximum Power Intermittently	120W
Minimum Pulse Energy	50mJ
Maximum Pulse Energy	200J
Response Time	2 s
Maximum Average Power Density	35kW/cm²
Maximum Energy Density <100 ns	0.7J/cm²
Maximum Energy Density 2 ms	45J/cm²
Cooling	Fan
Dimensions	64 L x 64 W x 93 D (mm)
Cable Length	1.5 m
CE Compliance	Yes
UKCA Compliance	Yes
China RoHS Compliance	Yes

Choosing a Thermal Sensor		Sensors for Measuring Laser Power

In this short “Basics” video we review the use – and selection - of thermal sensors for measuring low, medium and high laser powers.		In this short "Basics" video we review in general how one goes about measuring laser beam power, so that you'll have a clear understanding of what the different sensor types are, and when to use each type.
Product Overview: F80(120)A-CM-17 High Damage Threshold Laser Power Sensor		On-demand Webinar: Laser measurement solutions for material micro processing applications

If you need to measure the power of high repetition rate lasers with very short pulses (typical in many micromachining applications) – and you want a sensor that will survive the experience – the new F80(120)A-CM-17 from Ophir may be exactly what you need. Get a short overview in this video.		If you use lasers in material "micro processing" applications – such as drilling via holes in PCBs, OLED display "lift-off", cutting of smartphone cover glass – you already know how difficult the challenges are.

Related Products

L50(150)A-LP2-35

L50(150)A-LP2-35

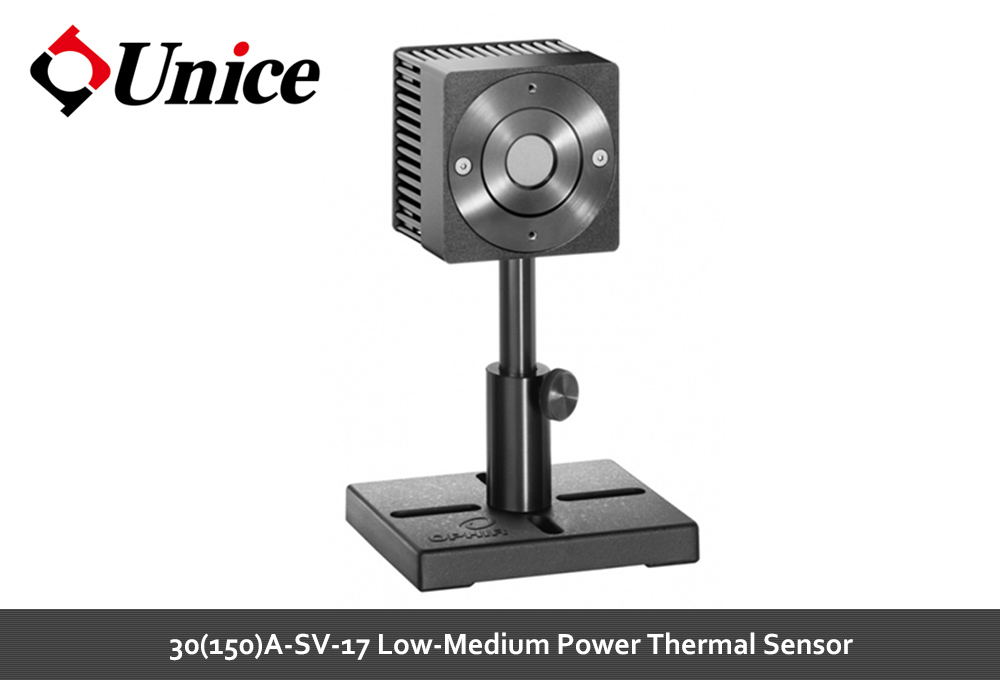

30(150)A-SV-17

20C-BB-12-SH

150C-SH

Similar Products

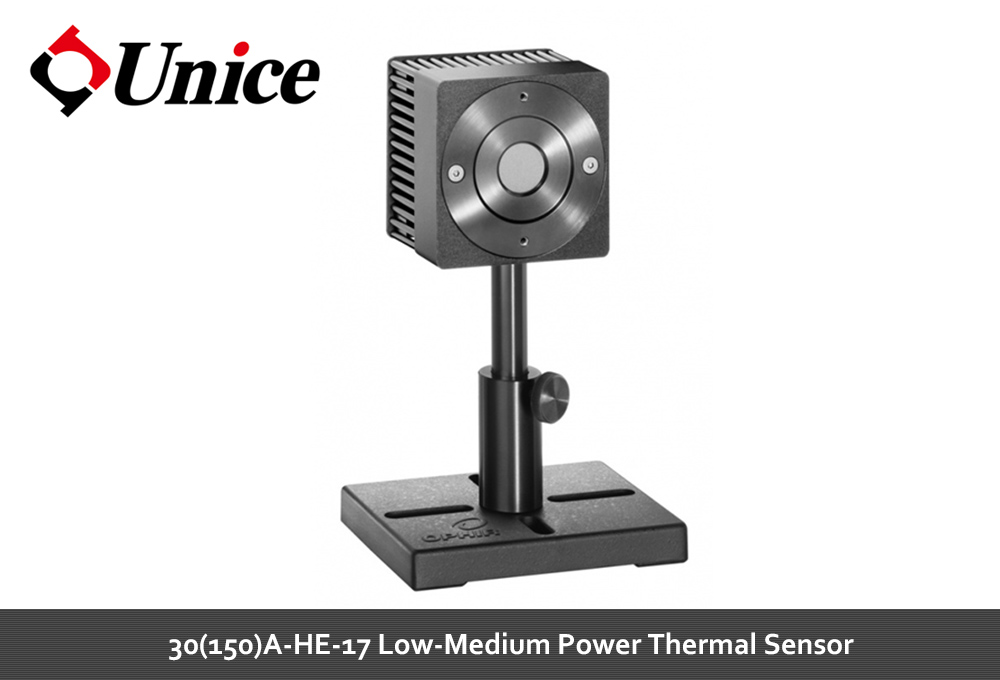

30(150)A-HE-17
