LaserStar Dual Channel Monochrome Display Laser Power and Energy Meters

LaserStar Dual Channel

Model：LaserStar Dual Channel
Description：

LaserStar Dual Channel Datasheet Power Meters Catalog

Price(USD)：$0

Content Software Video

Model	LaserStar Dual Channel
Thermal Sensor Compatibility	Yes
Photodiode Sensor Compatibility	Yes
Pyroelectric Sensor Compatibility	Yes
BeamTrack Sensor Compatibility	No
Statistics	Yes
Analog Out	1V
RS232	30 Hz
GPIB	1500 Hz
Trigger Input/Output	No
On-Board Data Storage	59.4k
Automation Interface	No
Labview VI's	Yes
CE Compliance	Yes
UKCA Compliance	Yes
China RoHS Compliance	Yes

PC Software & Drivers

This section describes various ways to interface the Ophir meter to your PC as well as the software options available.

StarCom

The StarCom application together with the Ophir meters that utilize the RS232 protocol turns your PC or laptop into a full-fledged Ophir laser power/energy meter. StarCom supports all major Ophir sensors. Supports the Nova, LaserStar, Nova-II, and Vega meters.

LabVIEW for Dual Channel

VIs gives a complete measurement interface with Ophir's Dual Channel LaserStar.

Selected Screens

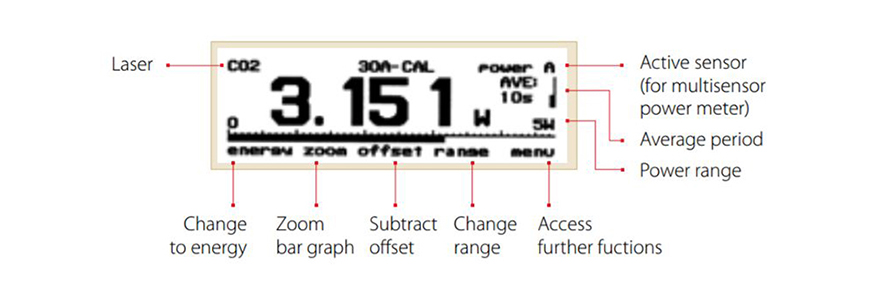

Digital Power Screen
• CW industrial, medical and scientific lasers • pW to multi kW with appropriate sensors • Can average over selected period. Useful for unstable lasers • Fast response bar graph

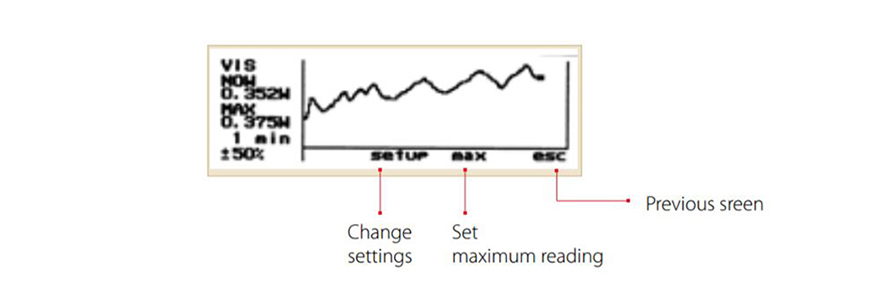

Laser Tuning Screen or Power Log Screen (not shown)
• Maximizing laser power • User selected time period and zoom • Option of audio tune tone for maximizing laser power

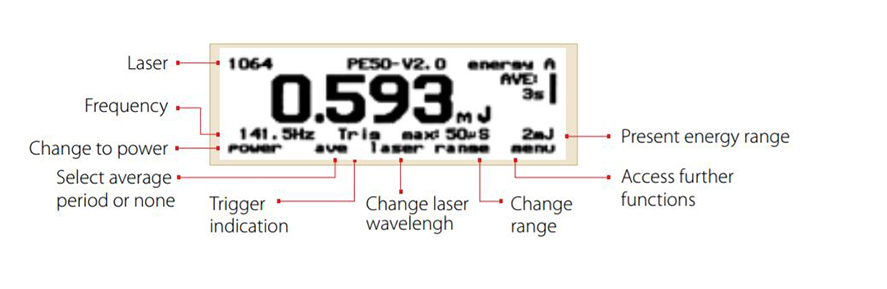

Energy Measurement Screen
• Pyroelectric and thermal sensors - single pulse • Pyroelectric frequency measurement

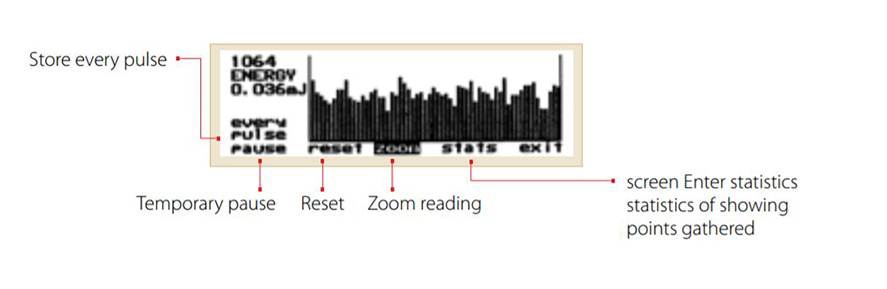

Energy Log Screen
• Pulsed energy sensors • Thermal sensors - successive single pulses • Continuous scroll • Energy statistics

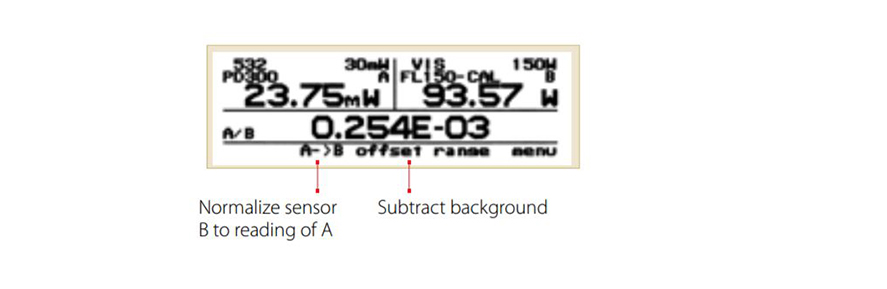

Ratio Screen
• Two independent sensors • Measure ratio, sum, difference • Normalize one sensor to the other

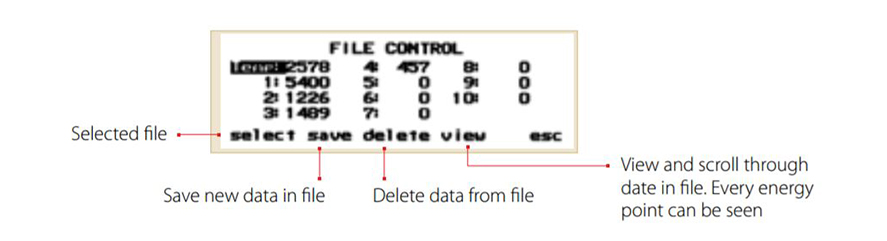

Data Storage and Transmission
• Non-volatile storage of power and energy logging data • Store in up to 10 files and transmit to PC • PC using StarCom Windows program provided

Introduction to the StarLab Laser Measurement Application		Setting Your Laser Power Meter To a Custom Wavelength

This video gives an overview of the StarLab application and its various functions. Part 1 of a series of video segments teaching you how to use StarLab.		Learn how to set the correct wavelength for your measurement, even when the wavelength you need is not one of the default wavelengths offered by the meter.
How to see an analog representation of laser power/energy on a scope		Easy Setup of Laser Power Meter and Sensor

Do you sometimes need to see an analog representation of your laser power/ energy on a scope, in parallel to measuring it with a meter? This video will show you how to do that.		See how easy it is to setup an Ophir power meter and sensor to measure your laser's power and energy. Learn more at www.ophiropt.com/photonics.
Calibration Factors - Laser Power/Energy Meter		Clarifications: Range Selection, Measurement Duration

When a power/energy meter is in "Calibrate" mode, various "Factors" are displayed to the user. This video explains the meaning of each of these factors.		Sometimes, even experienced users of laser measurement equipment come across some issues that, although basic, need to be clarified. This video reviews 2 such issues: (1) selection of correct range when it's not quite obvious (and what happens if one goes over range), and (2) how long a measurement duration may be.
