Product name : 190nm to 1100nm Silicon CCD Cameras
Description :
For lasers between 190-1100nm wavelengths, BeamGage interfaces to both silicon CCD and CMOS USB cameras.
Specification
USB Silicon CMOS Camera
 |
 |
|
|---|---|---|

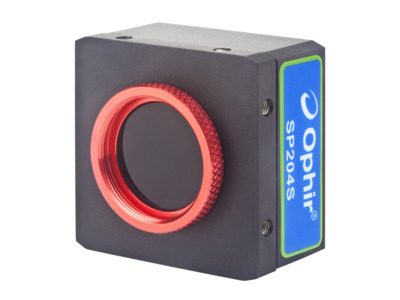

| Model | SP932U | SP204S |
| Spectral Response nm | 190 - 1100nm | 190 - 1100nm |
| Application | 1/1.8” format, slim profile, wide dynamic range, CW & pulsed lasers, adjustable ROI | 1/1.8” format, slim profile, wide dynamic range, CW & pulsed lasers, adjustable ROI |
| Beam sizes | 34.5μm - 5.3mm | 27.4μm – 5.6mm |
| Number of Elements | 2048 x 1536 | 2472 x 2064 |
| Communication | USB 3.0 | USB 3.0 |
Large Format USB & GigE Cameras
 |
 |
|
|---|---|---|

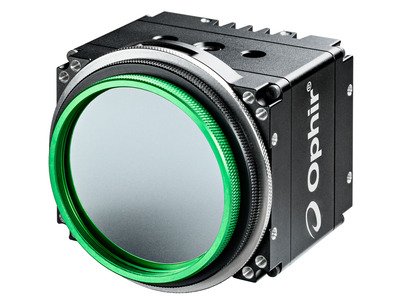

| Model | SP402S | SP504S |
| Spectral Response nm | 190 - 1100nm | 340 - 1100nm |
| Application | 12.3mm x 12.3mm, 1.1” format for large beams, CW & pulsed lasers, adjustable ROI | 23mm x 23mm, APS-H format for large beams, CW & pulsed lasers, adjustable ROI |
| Beam sizes | 27.4μm - 12.3mm | 45μm - 23mm |
| Number of Elements | 4512 x 4512 | 5120 x 5120 |
| Communication | USB 3.0 | GigE |
| Model | Description | Spectral Range | Beam Size | Software | Price(USD) | Quantity | |
|---|---|---|---|---|---|---|---|
| 0 | BGS-USB3-SP932U | Laser Beam Profiler | 190-1100 nm | 34.5μm 5.3mm | BeamGage Standard | - | |
| 1 | BGP-USB3-SP932U | Laser Beam Profiler | 190-1100 nm | 34.5μm 5.3mm | BeamGage Professional | - | |
| 2 | BM-USB3-SP932U | Laser Beam Profiler | 190-1100 nm | 34.5μm 5.3mm | BeamMic | - | |
| 3 | BGS-USB3-SP204S | Laser Beam Profiler | 190-1100 nm | 27.4μm - 5.7mm | BeamGage Standard | - | |
| 4 | BGP-USB3-SP204S | Laser Beam Profiler | 190-1100 nm | 27.4μm - 5.7mm | BeamGage Professional | - | |
| 5 | BGS-USB3-SP402S | Laser Beam Profiler | 190-1100 nm | 27μm to 12.3 mm | BeamGage Standard | - | |
| 6 | BGP-USB3-SP402S | Laser Beam Profiler | 190-1100 nm | 27μm to 12.3 mm | BeamGage Professional | - | |
| 7 | BGP-G-SP504S | Laser Beam Profiler | 340-1100 nm | 45μm - 23mm | BeamGage Professional | - | |
| 8 | BGS-USB3-LT665 | Laser Beam Profiler | 190-1100 nm | 46 μm to 9.9 mm | BeamGage Standard | - | |
| 9 | BGP-USB3-LT665 | Laser Beam Profiler | 190-1100 nm | 46 μm to 9.9 mm | BeamGage Professional | - |
