1440 to 1605nm Phosphor Coated CCD Cameras
1440 to 1605nm Phosphor Coated CCD Cameras
Product name : 1440 to 1605nm Phosphor Coated CCD Cameras
Description :
See your beam as never before with BeamGage®. The camera-based beam profiling system consists of a camera and analysis software. Often times, this system will need to be used with beam attenuation or beam sizing accessories, depending on your laser application. The advantage to camera-based beam profiling is the real-time viewing and measuring of a laser’s structure. BeamGage software includes an extensive set of ISO quantitative measurements, features a rich graphical interface, and features its patented UltraCal™ algorithm, providing the industry’s highest accuracy measurements.
1440-1605nm
 |
 |
|
| Model | SP928-1550 | LT665-1550 |
|---|---|---|
| Spectral Response | 1440 - 1605nm | 1440 - 1605nm |

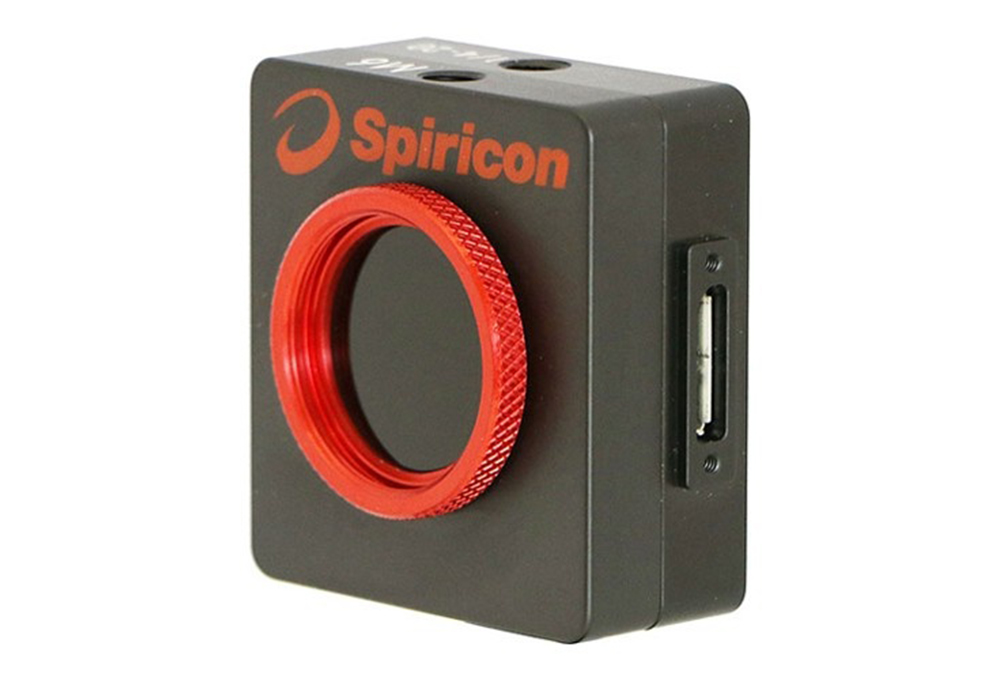

| Application | NIR wavelengths, 1/1.8” format, adjustable ROI and binning |

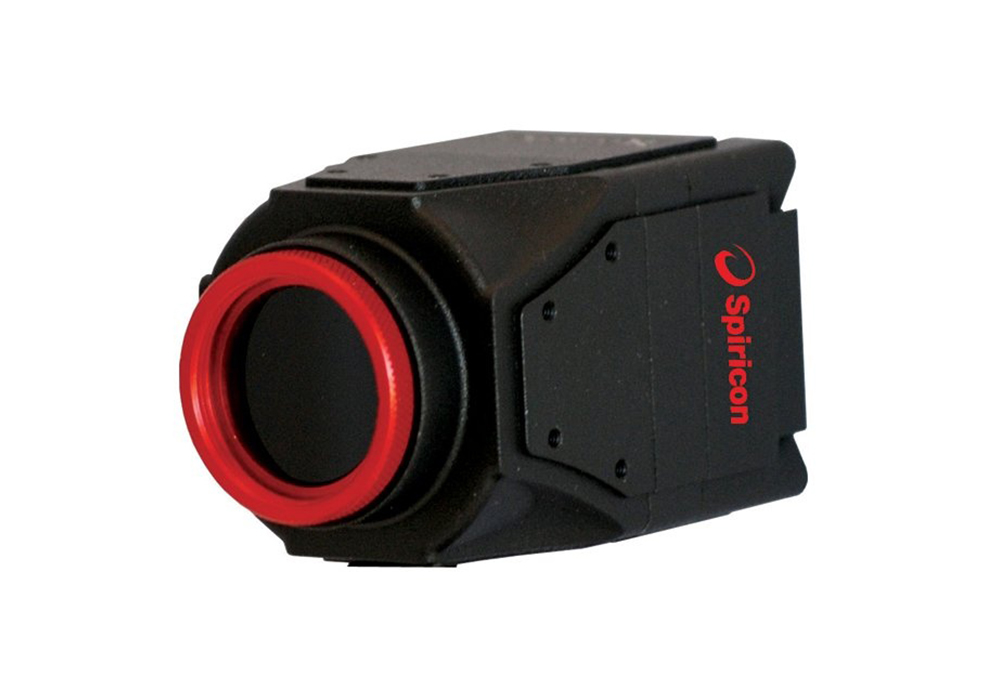

12.5mm x 10mm, 1” format for large beams, CW & pulsed lasers, adjustable ROI |
| Number of Elements | 1928 x 1448 | 2752 x 2195 |
| Interface Style | USB 3.0 | USB 3.0 |
| Windows OS support | Windows 7 (32/64) | |
| Model | Description | Price(USD) | Quantity | |
|---|---|---|---|---|
| 0 | BGS-USB-SP928-1550-OSI | Beam Profilers NIR Response System, BeamGage Standard Software, High Resolution | - | |
| 1 | BGS-USB3-LT665-1550 | Beam Profilers NIR Response System, BeamGage Standard Software, Large Format | - | |
| 2 | BGP-USB-SP928-1550-OSI | Beam Profilers NIR Response System, BeamGage Professional Software, High Resolution | - | |
| 3 | BGP-USB3-LT665-1550 | Beam Profilers NIR Response System, BeamGage Professional Software, 1\" Large Format | - | |
| 4 | BM-USB-SP928-1550-OSI | Beam Profilers NIR Response System, BeamMic Software, High Resolution | - |
