13 to 355nm and 1.06 to 3000um Pyroelectric Array Cameras
13 to 355nm and 1.06 to 3000um Pyroelectric Array Cameras
Product name : 13 to 355nm and 1.06 to 3000um Pyroelectric Array Cameras
Description :
See your beam as never before with BeamGage®. The camera-based beam profiling system consists of a camera and analysis software. Often times, this system will need to be used with beam attenuation or beam sizing accessories, depending on your laser application. The advantage to camera-based beam profiling is the real-time viewing and measuring of a laser’s structure. BeamGage software includes an extensive set of ISO quantitative measurements, features a rich graphical interface, and features its patented UltraCal™ algorithm, providing the industry’s highest accuracy measurements.
13-355nm & 1.06-3000μm
 |
 |
|

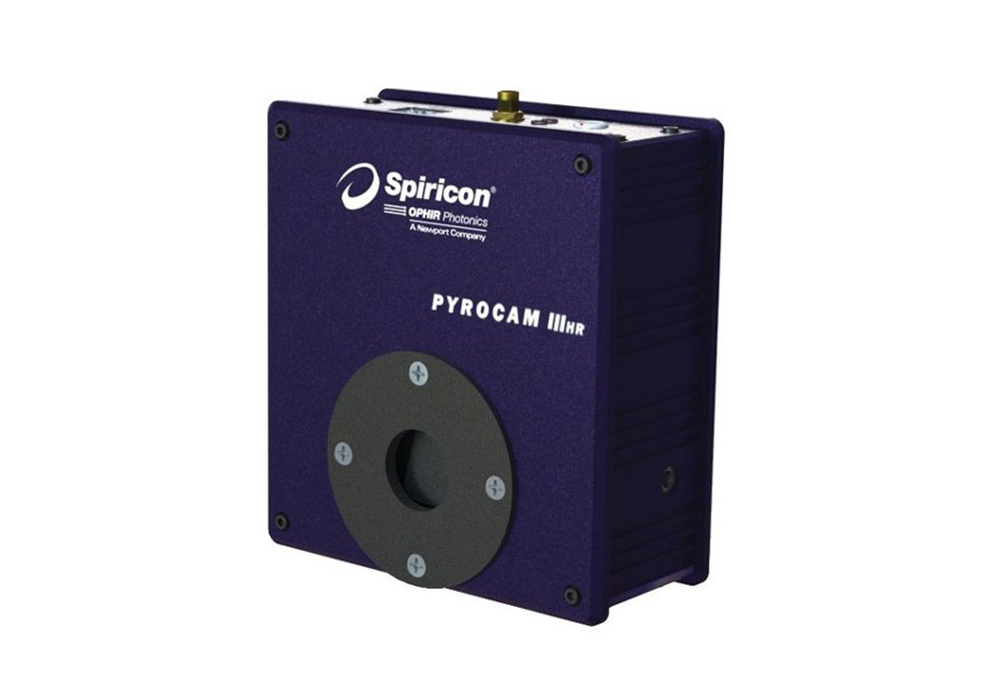

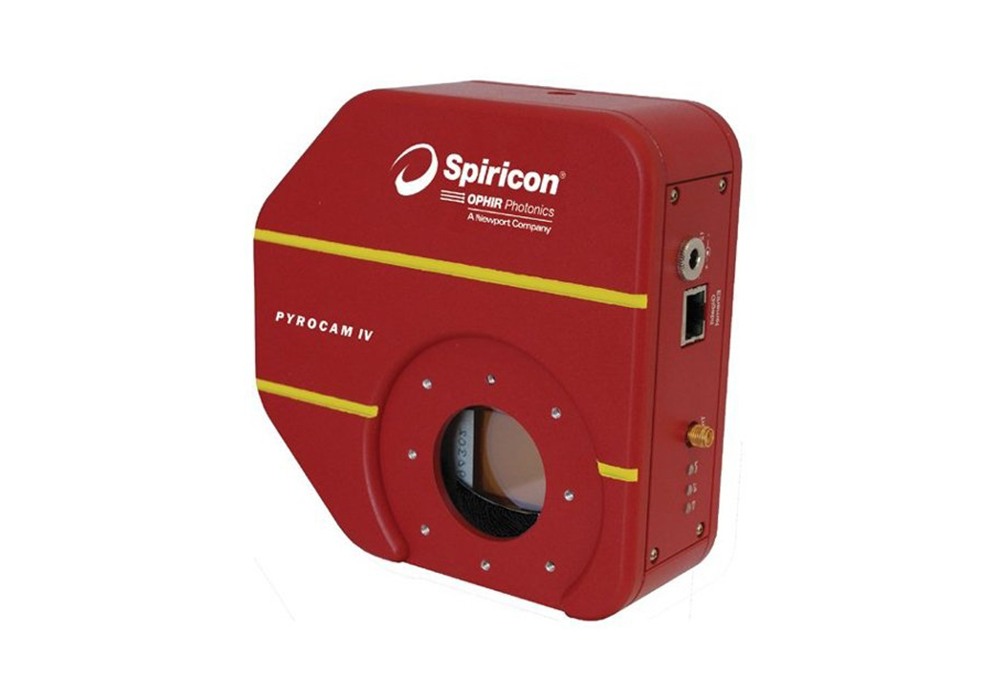

| Model | Pyrocam IIIHR | Pyrocam IV |
|---|---|---|
| Spectral Response | 13-355nm & 1.06-3000μm | 13-355nm & 1.06-3000μm |
| Application | UV & Far IR Only commercial array to view Terahertz |
UV & Far IR Only commercial array to view Terahertz |
| Number of Elements | 160 x 160 | 320 x 320 |
| Interface Style | GigE | GigE |
| Windows OS support | Windows 7 (32/64) | |
| Model | Description | Price(USD) | Quantity | |
|---|---|---|---|---|
| 0 | PY-III-HR-C-A-PRO | Beam Profilers Pyroelectric Array System, BeamGage Professional Software, Active Area 12.8mmx12.8mm | - | |
| 1 | PY-III-HR-C-MIR-PRO | Pyrocam III HR Laser Beam Profiler, 160x160 Pyroelectric, 100 fps, 3000-5000 nm, GigE | - |
