Ultra High Resolution Wavefront Sensors
Ultra High Resolution Wavefront Sensors
Product name : Ultra High Resolution Wavefront Sensors
Description :
Just a few months after the debut of the “Swiss Army Knife of Optics” in the visible and SWIR wavelengths, another series of truly versatile tools demonstrates Imagine Optic’s commitment to providing the optical scientist or engineer with cutting-edge yet user-friendly instruments.
On top of combining a high-resolution mode with all the benefits that make Shack-Hartmann one of the most relied-upon technologies in optical metrology, our HASO LIFT series embeds a fully revamped Waveview4, including the absolute tilt measurement SpotTracker technology and numerous other options.
A number of HASO4 series wavefront sensors will be available with a LIFT option in the coming months.
| PRODUCT NAME | PUPIL SIZE W x L (mm2) | PHASE POINT RESOLUTION | MICROLENS NUMBER / (LIFT PH. P. RES.) | MAX FREQ. (Hz) | WAVELENGTH (nm) | REPEATABILITY (RMS λ/n) | ABSOLUTE ACCURACY (RMS λ/n) |

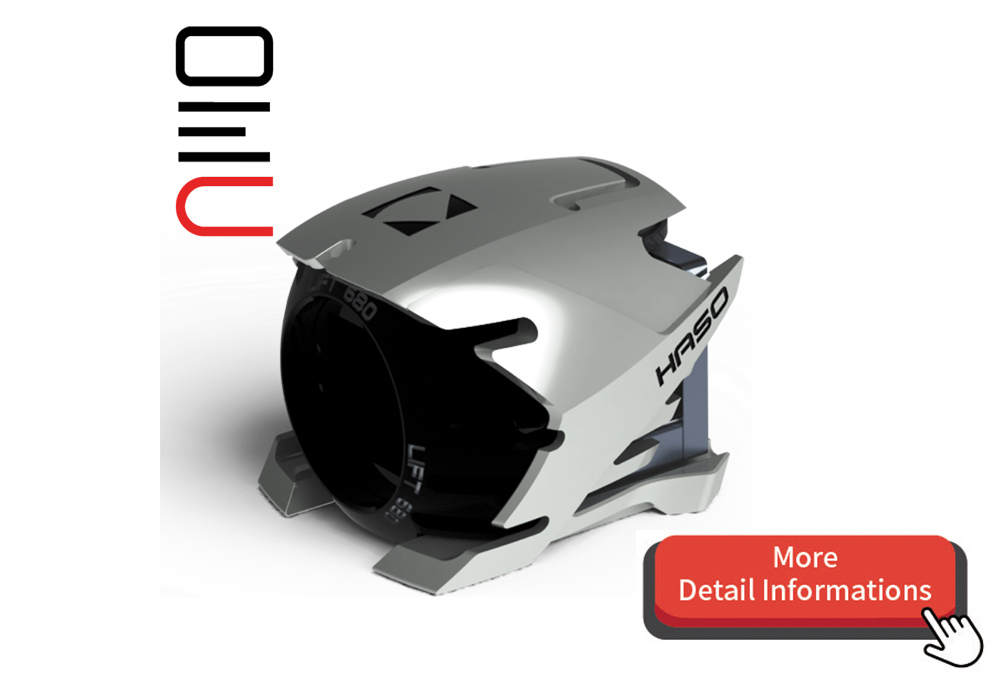

| HASO4 LIFT 680 | 13.78 x 10.21 | 342720 | 170 x 126 / (680 x 504) | 30 | 400 - 750 | 200 | 100 |

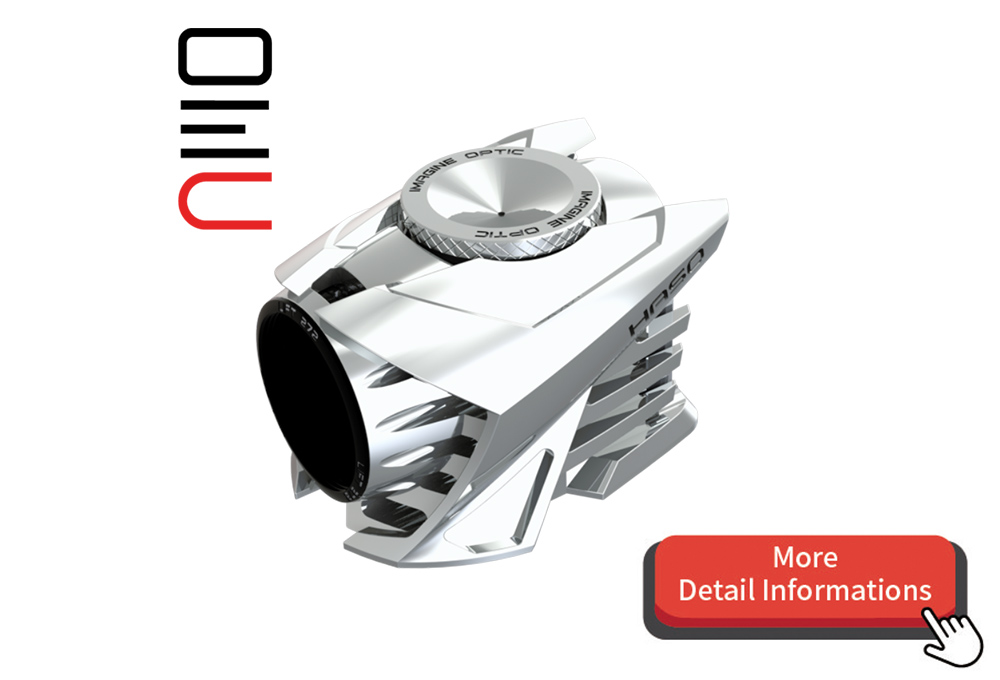

| HASO LIFT 272 | 7.0 x 5.2 | 54400 | 68 x 50 / (272 x 200) | 20 | 400 - 750 | 200 | 100 |

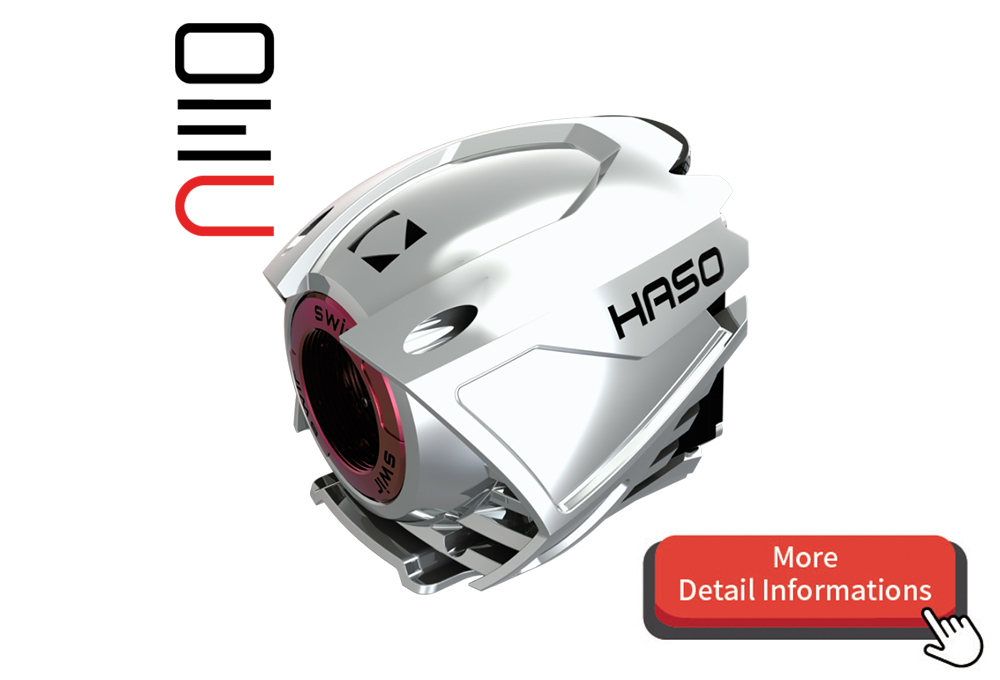

| HASO SWIR LIFT 160 | 9.30 x 7.4 | 20480 | 40 x 32 / (160 x 128) | 150 | 1050 - 1700 | 200 | 100 |
| HASO LIFT 680 | HASO LIFT 272 | HASO SWIR LIFT 160 |
 |
 |
 |
| BEST FOR – High spatial sampling frequency – Very large dynamic range – Freeform optics characterization – Parabolic mirrors characterization – High spatial frequency aberrations |
BEST FOR – A great choice for lab or industrial application – Successfully used in the most demanding of applications in optical metrology, microscopy and laser diagnostics. – Optimize the alignment of complex systems – On and off-axis 3D MTF |
BEST FOR – SWIR metrology (1050-1700nm) – High Resolution testing of IR optics and coatings |
