Product name : Mitutoyo NIR, NUV, and UV Infinity Corrected Objectives
Description :
Mitutoyo’s NIR, NUV, and UV infinity corrected long working distance objectives combine the benefits of the standard M Plan Apo and M Plan Apo SL series objectives with enhanced spectral ranges. The NIR objectives are corrected from 480 to 1800nm, making them ideal for semiconductor and telecommunication inspection, or for laser cutting with common Nd:YAG lasers. The HR series offers an increased numerical aperture, providing smaller spot sizes and higher resolution. The NUV and UV series of objectives have excellent performance at the doubled, tripled, and quadrupled Nd:YAG harmonics.

● Ideal for Bright Field Imaging in UV, Visible, and NIR Spectral Regions
● Excellent Performance at Nd:YAG Laser Lines
● Broad Spectral Ranges

Specification

Unice Mitutoyo NIR, NUV, and UV Infinity Corrected Objectives

Unice Mitutoyo NIR, NUV, and UV Infinity Corrected Objectives

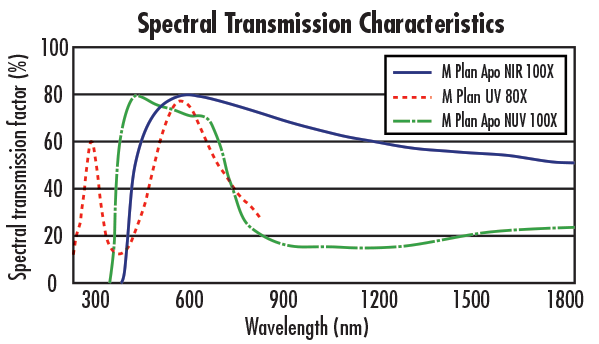

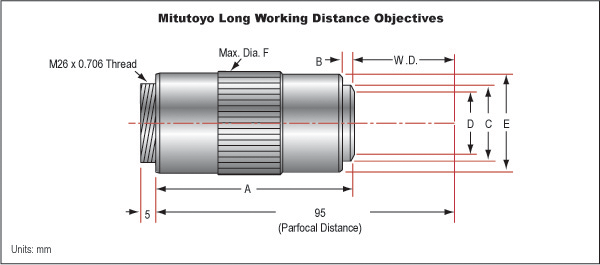

Dimensions (mm)
Model M Plan NIR A B C D E F W.D.
UNI46402 5X NIR 57.5 - 23.8 23 32.2 34 37.5
UNI46403 10X NIR 64.5 1 25.2 24.8 32.2 34 30.5
UNI46404 20X NIR 75 - - - 32.2 34 20
UNI46405 50X NIR 78 - 24.4 24 32.2 34 17
UNI46406 100X NIR 83 - 25 24.6 32.2 34 12
UNI37550* 20X NIR LCD 75.02 - - - 32.2 34 20.35
Model  M Plan NUV A B C D E F W.D.
UNI86176 10X NUV 64.5 - 25.2 24.8 32.2 34 30.5
UNI46407 20X NUV 78 - - - 32.2 34 17
UNI46408 50X NUV 80 - - - 32.2 34 15
UNI46409 100X NUV 84 1.8 25 24 32.2 34 11
Model  M Plan UV A B C D E F W.D.
UNI86175 10X UV 75 - - - 32.2 34 20
UNI56320 20X UV 80 - - - 32.2 34 15
UNI56321 50X UV 83 - - - 32.2 34 12
UNI56322 80X UV 85 - 22.7 - 32.2 34 10
*LCD 20X parfocal length is 95.37
Model Description Magnification WD (mm) Wavelength Range (nm) Price(USD) Quantity
0 UNI46402 Plan Apo NIR Infinity Corrected Objective 5X 37.5 480 - 1800 -
1 UNI37550 Plan Apo NIR LCD Infinity Corrected Objective 20X 19.98 480 - 1800 -
2 UNI46403 Plan Apo NIR Infinity Corrected Objective 10X 30.5 480 - 1800 -
3 UNI46404 Plan Apo NIR Infinity Corrected Objective 20X 20.0 480 - 1800 -
4 UNI46405 Plan Apo NIR Infinity Corrected Objective 50X 17.0 480 - 1800 -
5 UNI46406 Plan Apo NIR Infinity Corrected Objective 100X 12.0 480 - 1800 -
6 UNI86176 Plan Apo NUV Infinity Corrected Objective 10X 30.5 355 - 620 -
7 UNI46407 Plan Apo NUV Infinity Corrected Objective 20X 17.0 355 - 620 -
8 UNI46408 Plan Apo NUV Infinity Corrected Objective 50X 15.0 355 - 620 -
9 UNI46409 Plan Apo NUV Infinity Corrected Objective 100X 11.0 355 - 620 -
10 UNI86175 Plan UV Infinity Corrected Objective 10X 20.0 200 - 800 -
11 UNI56320 Plan UV Infinity Corrected Objective 20X 15.0 200 - 800 -
12 UNI56321 Plan UV Infinity Corrected Objective 50X 12.0 200 - 800 -
13 UNI56322 Plan UV Infinity Corrected Objective 80X 10.0 200 - 800 -
