M1228-MPW3 5 Megapixel Ultra Low Distortion Lens

Model：M1228-MPW3
Description：

Price(USD)：$0

Content

Model		M1228-MPW3
Focal Length		12mm
Max. Aperture Ratio		1:2.8
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F2.8 - F16.0
Operation Range	Focus	0.1m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		83cm x 62mm 2/3"
Angle of View	D	2/3"	49.3°	1/1.8"	40.8°	1/2.5"	33.0°
	H		40.3°		33.1°		26.7°
	V		30.8°		26.0°		20.3°
Operating Temperature		-10° C ~ +50° C
Distortion		2/3"	-0.10%(y=5.5mm)	1/1.8"	0.04%(y=4.5mm)	1/2.5"	0.00%*(y=3.55mm)
Back Focal Length		9.2mm
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M27.0 P=0.5mm
Weight		60g
Dimensions		Φ29mm x 43.5mm

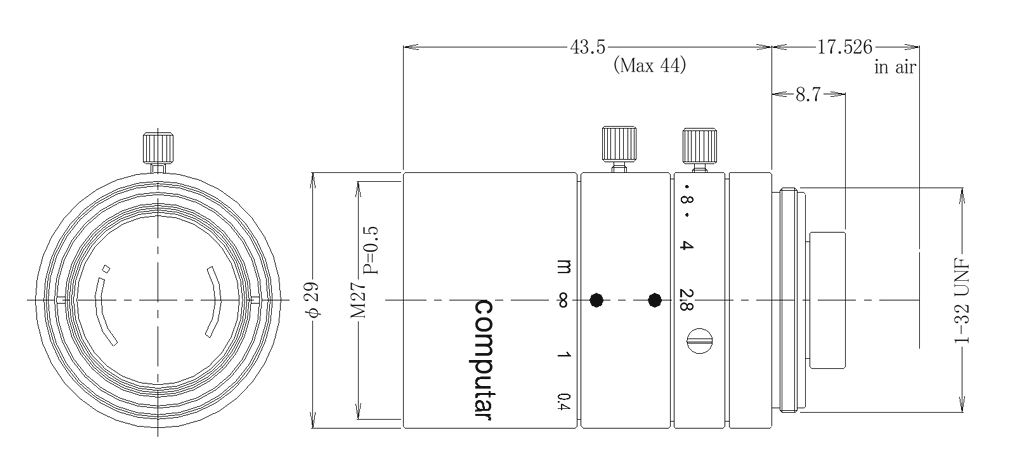

Dimensions
