Unice M7528-MP 2/3" Megapixel Lens

Model：M7528-MP
Description：

Price(USD)：$0

Content

Model		M7528-MP
Focal Length		75mm
Max. Aperture Ratio		1:2.8
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F2.8 - F16C
Operation Range	Focus	0.3m - Inf. *
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		4.1(H)cm x 3.1(V)cm 2/3"
Angle of View	D	2/3"	8.5°	1/2"	6.2°
	H		6.8°		5°
	V		5.1°		3.7°
Operating Temperature		-10° C ~ +50° C
Distortion		2/3"	-0.4% (y=5.5)	1/2"	-0.2% (y=4.0)
Back Focal Length		21.5mm (WD=400mm)
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M30.5 P=0.5mm
Weight		113g
Dimensions		Φ35mm x 57.75mm

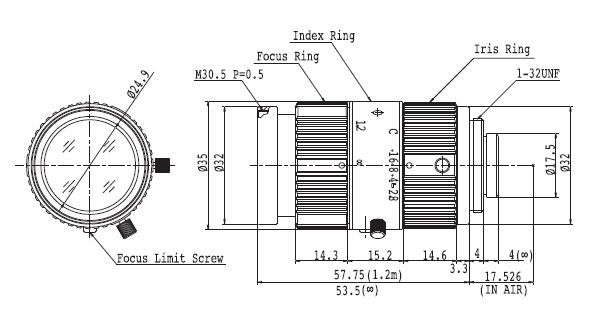

Dimensions
