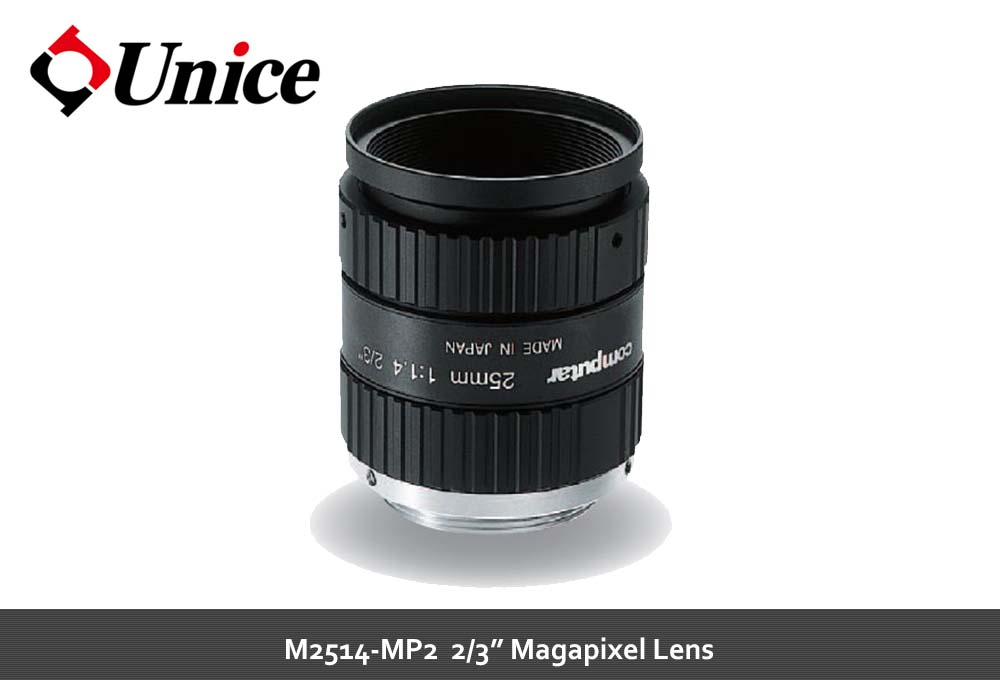

$Unice M2514-MP2 2/3\" Megapixel Lens$

Model：M2514-MP2
Description：

Price(USD)：$0

Content

Model		M2514-MP2
Focal Length		25mm
Max. Aperture Ratio		1:1.4
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F1.4 - F16C
Operation Range	Focus	0.3m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		10.6(H)cm x 7.9(V)cm 2/3"
Angle of View	D	2/3"	24.9°	1/2"	18.2°
	H		20.0°		14.6°
	V		15.1°		11.0°
Operating Temperature		-10° C ~ +50° C
Distortion		2/3"	-0.3% (y=5.5)	1/2"	-0.1% (y=4.0)
Back Focal Length		13.1mm (Inf)
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M30.5 P=0.5mm
Weight		71g
Dimensions		Φ33.5mm x 36.0mm

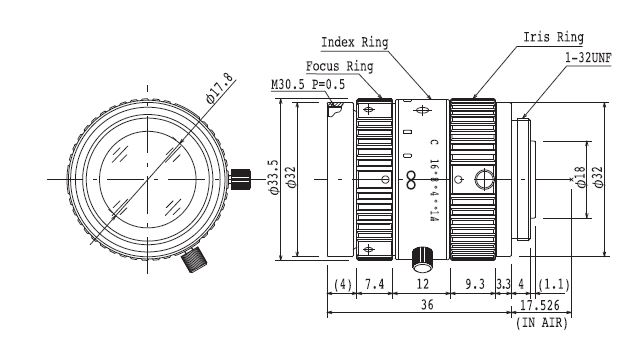

Dimensions
