Unice M1214-MP2 2/3" Megapixel Lens

Model：M1214-MP2
Description：

Price(USD)：$0

Content

Model		M1214-MP2
Focal Length		12mm
Max. Aperture Ratio		1:1.4
Max. Image Format		8.8mm x 6.6mm (Φ11mm)
Operation Range	Iris	F1.4 - F16C
Operation Range	Focus	0.15m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		12.1(H)cm x 9.0(V)cm 2/3"
Angle of View	D	2/3"	49.2°	1/2"	37.0°
	H		40.4°		30.0°
	V		30.8°		22.7°
Operating Temperature		-10° C ~ +50° C
Distortion		2/3"	-0.1% (y=5.5)	1/2"	-0.35% (y=4.0)
Back Focal Length		13.1mm (Inf)
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M30.5 P=0.5mm
Weight		62g
Dimensions		Φ33.5mm x 28.2mm

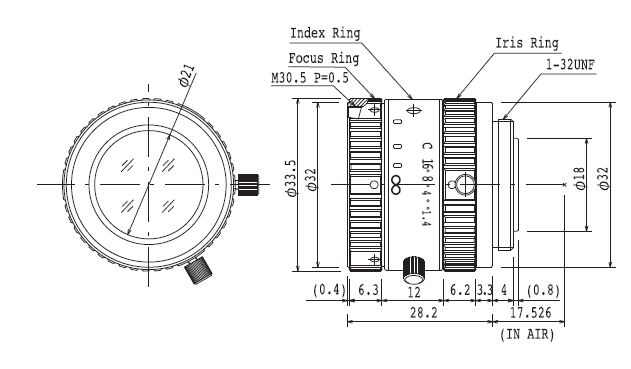

Dimensions
