Unice H0514-MP2 2/3&quot; Megapixel Lens

Model：H0514-MP2
Description：

Price(USD)：$0

Content

Model		H0514-MP2
Focal Length		5mm
Max. Aperture Ratio		1:1.4
Max. Image Format		6.4mm x 4.8mm (Φ8mm)
Operation Range	Iris	F1.4 - F16C
Operation Range	Focus	0.1m - 0.9m
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		15.0(H)cm x 11.1(V)cm 1/2"
Angle of View	D	1/2"	76.7°	1/3"	62.3°
	H		65.5°		51.4°
	V		51.4°		39.5°
Operating Temperature		-10° C ~ +50° C
Distortion		1/2"	-0.48% (y=4.0)	1/3"	-2.26% (y=3.0)
Back Focal Length		10.8mm (WD=900mm)
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M43 P=0.75mm
Weight		102g
Dimensions		Φ44.5mm x 45.5mm

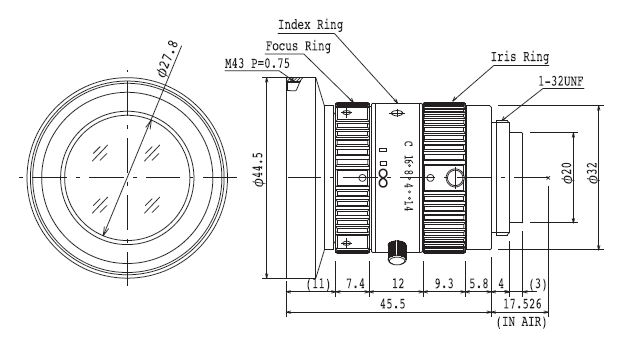

Dimensions
