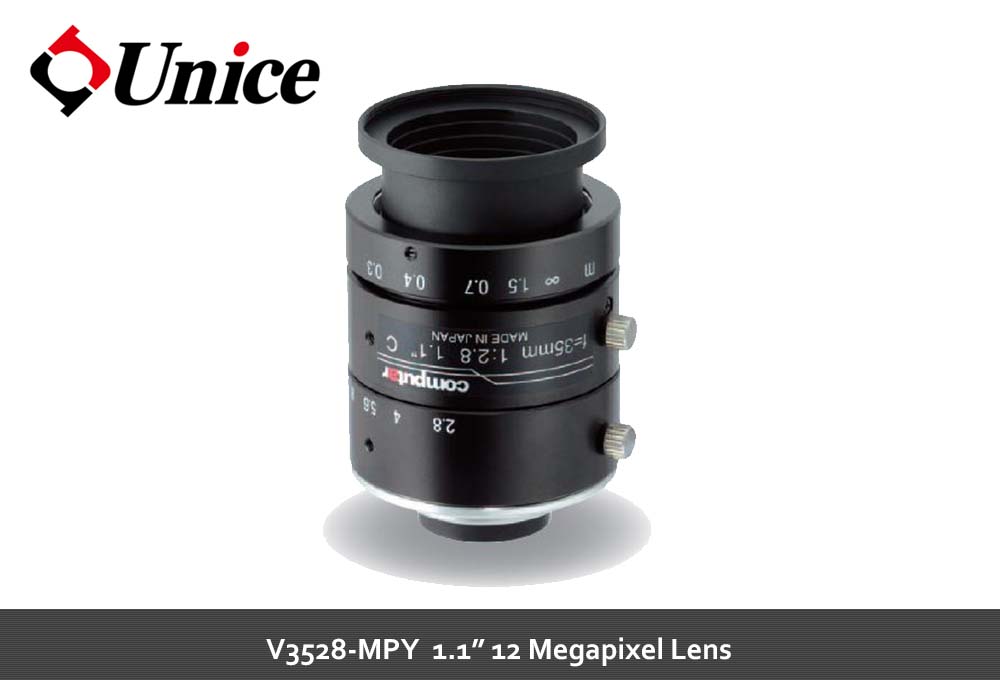

V3528-MPY 12 Megapixel Lens

Model：V3528-MPY
Description：

Price(USD)：$0

Content

Model		V3528-MPY
Focal Length		35mm
Max. Aperture Ratio		1:2.8
Max. Image Format		14.2mm x 10.4mm (Φ17.6mm)
Operation Range	Iris	F2.8 - F16.0
Operation Range	Focus	0.3m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		109.3(H)mm x 80.1(V)mm 1.1"
Angle of View	D	1.1"	28.2°	1"	25.8°	2/3"	17.9°
	H		22.9°		20.7°		14.3°
	V		16.9°		15.6°		10.8°
Operating Temperature		-10° C ~ +50° C
Distortion		1.1"	-0.1%(y=8.8)	1"	0.0%(y=8.0)	2/3"	0.0%(y=5.5)
Back Focal Length		11.9mm
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M34.0 P=0.5mm
Weight		103g
Dimensions		Φ39.5mm x 45.2mm

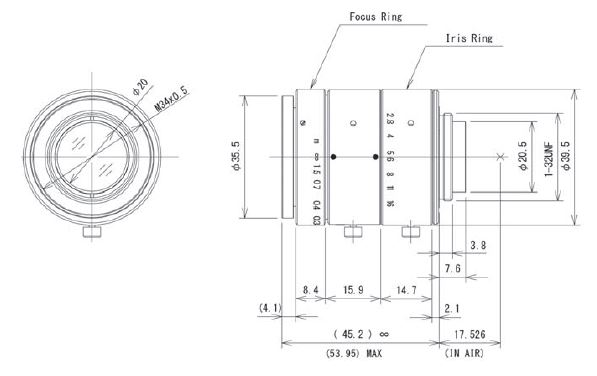

Dimensions

Related Products

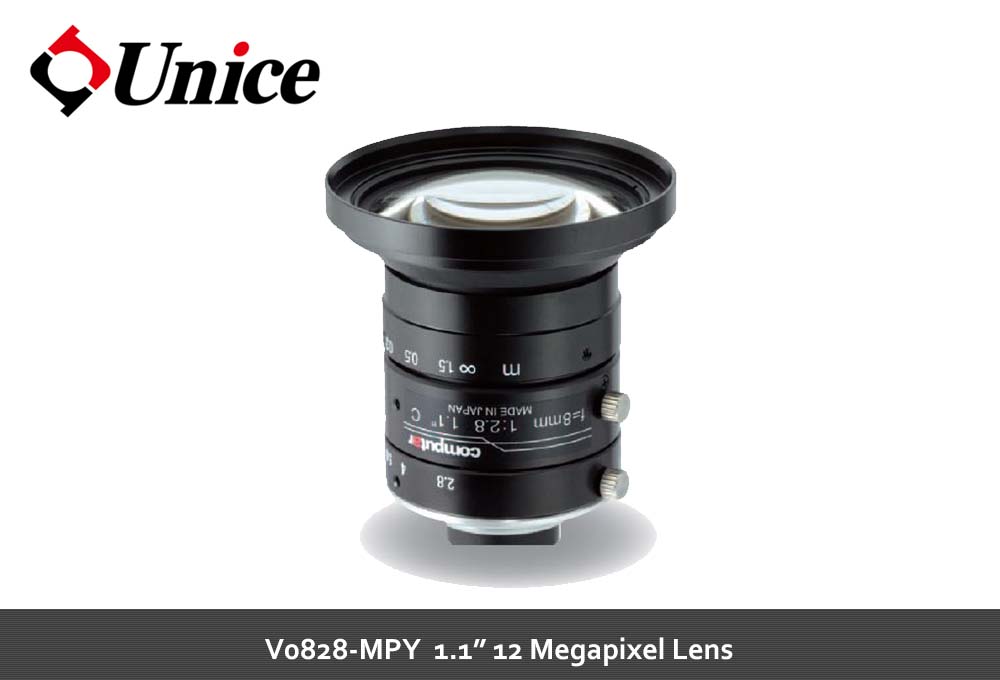

V0828-MPY

V1228-MPY

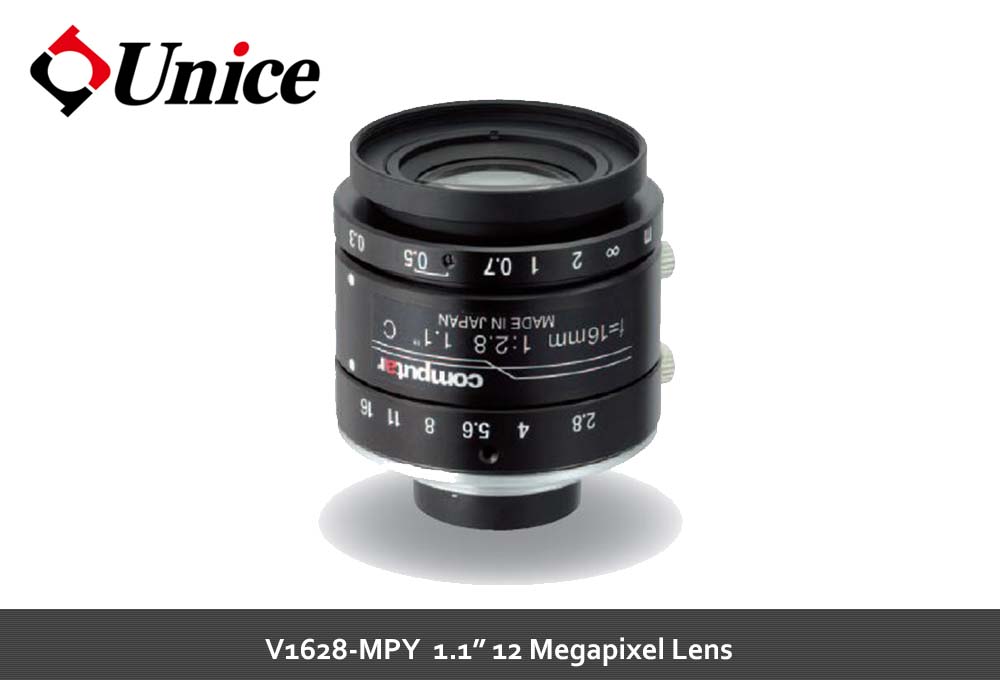

V1628-MPY

V5028-MPY

Similar Products

V0828-MPY

V1228-MPY

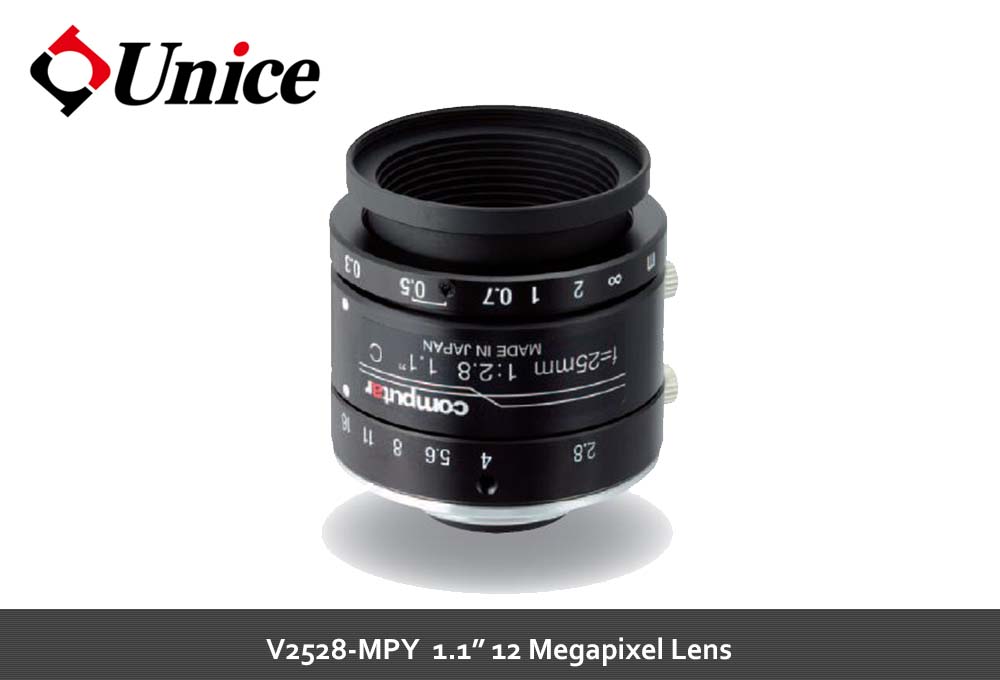

V2528-MPY
