F13469

Model：F13469
Description：

Price(USD)：$0

Specification

Model No	F13469
Fiber Type	Multimode Graded-Index
Numerical Aperture	0.2
Attenuation	@ 1300 nm, ≤ 2 dB/km; @ 850 nm, ≤ 4 dB/km
Core Diameter	50 ± 3 µm
Cladding Diameter	125 ± 2 µm
Coating Diameter	155 ± 5 µm
Cladding Non-Circularity	≤ 2.0%
Core Non-Circularity	≤ 5%
Core/Clad Offset	≤ 3 µm
Crimp and Cleave Compatibl	No
Hermetic Carbon Layer	300 to 400 Å

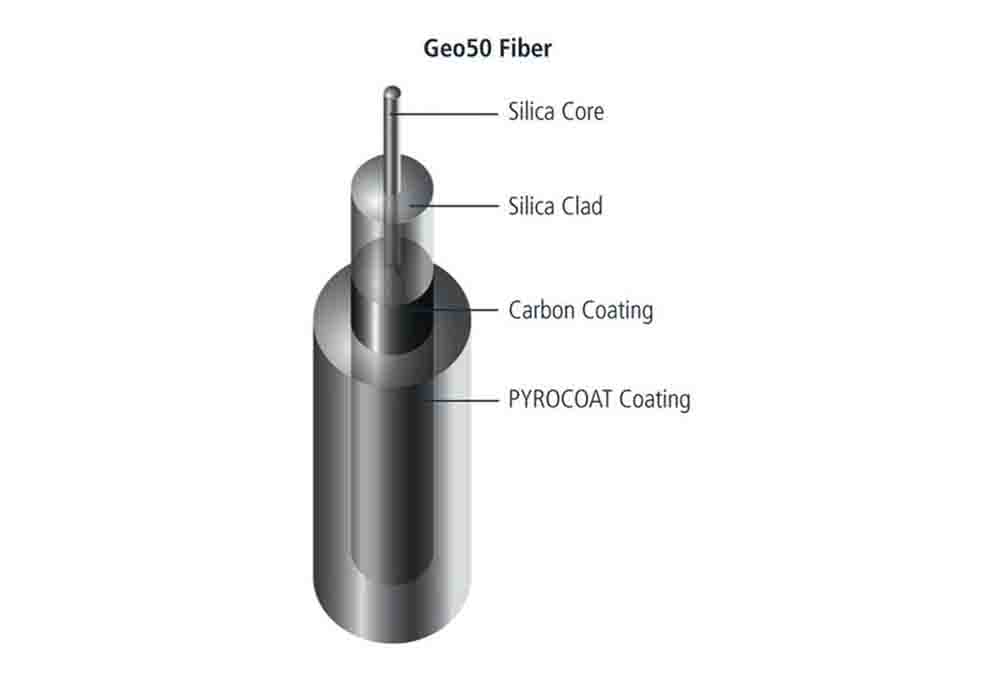

Coating Material	Carbon/PYROCOAT®
Operating Temperature	-65 to +300 ℃
Short-Term Temperature Excursions	Up to 400 ℃
Short-Term Bend Radius	≥ 8 mm
Long-Term Bend Radius	≥ 10 mm
Proof Test Level	200 kpsi ( 0.689 Gpa )
