Reflection Probes with Reference Leg

 Reflection Probes with Reference Leg

Product name : Reflection Probes with Reference Leg
Description :
A reflection/backscattering probe with a built-in reference leg is a convenient solution for long-term measurements and experiments in which variation or instability in the spectral output of the light source is expected to affect the reflection spectrum.

Available in both premium- and lab-grade, these probes include a reference leg that splits off from the light source connector for monitoring your illumination (or reference) source via a second spectrometer.

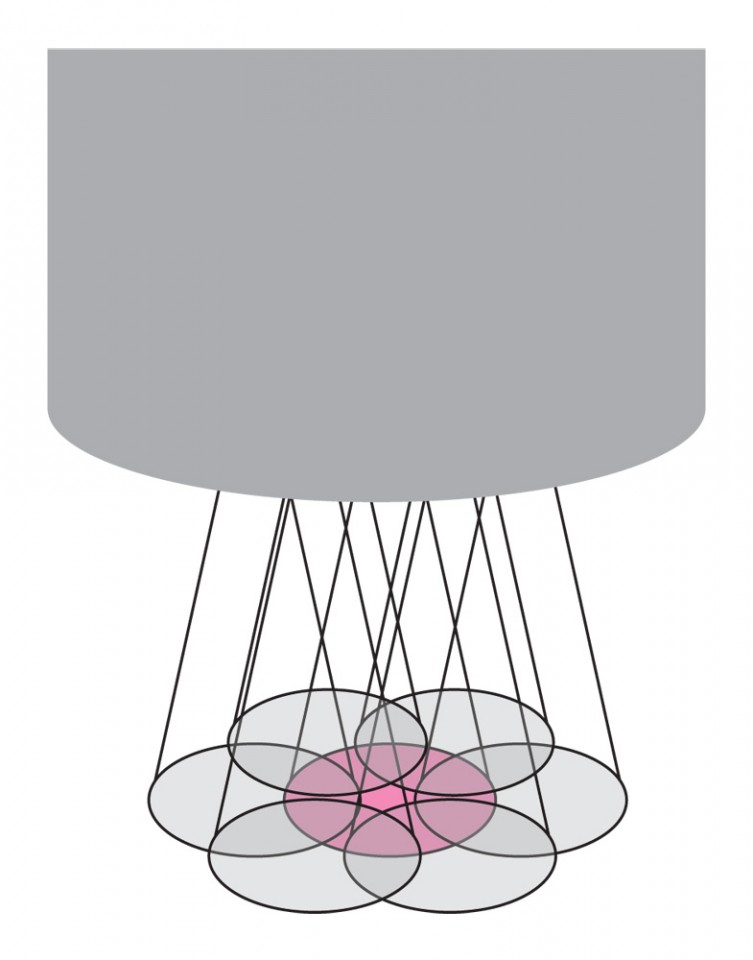

● 6-around-1 fiber bundle design at probe end for sample measurements

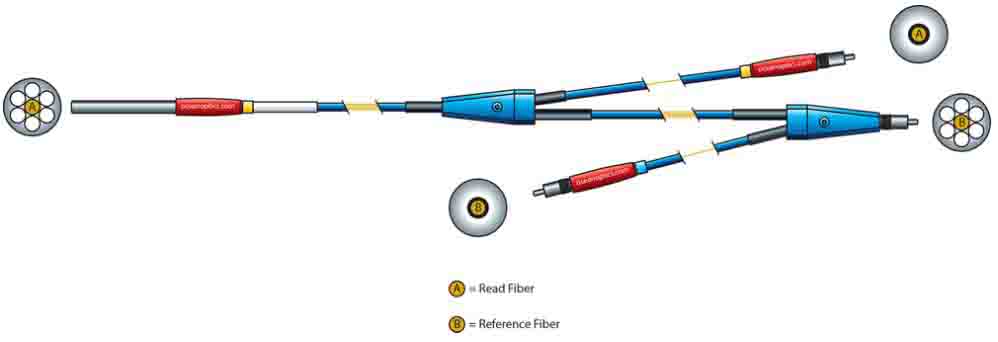

● 7-fiber leg connects to light source, single-fiber leg connects to spectrometer for best performance
● One optical fiber splits off from the light source connector for reference monitoring (6-around-1 design)

Specification

Model Description Wavelength Range (nm) Fiber Core Size (μm) Jacket Price(USD) Quantity
0 QR200-REF-UV-VIS Reflection Probe with Reference Leg 300 ~ 1100 200 Silicone monocoil -
1 R200-REF-UV-VIS Reflection Probe with Reference Leg 300 ~1100 200 Zip tube blue PVDF -
2 QR200-REF-VIS-NIR Reflection Probe with Reference Leg 400 ~ 2100 200 Silicone monocoil -
3 R200-REF-VIS-NIR Reflection Probe with Reference Leg 400 ~ 2100 200 Zip tube blue PVDF -
