Product name : 900 Micron UL94 V-0 Grade Hytrel Tubing
Description :
Unice’s self-extinguishing UL94 V-0 grade 900 micron Hytrel tubing can be employed as buffering material and provide additional protection for use with 250 um fiber:

● Protect bare fiber in any situation against mechanical damage during handling and installation.
● Bare fiber can be easily installed more than 5 meters.
● High resistance to creep, impact, and flex fatigue; flexi bili ty at low temperature; and good retension of properties at elevated temperatures.

Specification

More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw

Material Properties

Operating Temperature -40°C ~ + 85°C
Storage Temperature -20°C ~ + 60°C
Tubing Shrinkage 1.0
Material Property Value Unit
Self-Extinguishing Engineering
Thermoplastic Elastomer		 Tensile Modulus 555 MPa
Tensile Strength at Yield 27.5 MPa
Elongation at Yield 16 %
Flexural Modulus 660 MPa
Flexural Strength 24.5 MPa
Vicat Softening Point 197 oC
Water Absorption 0.2 %
Shrinkage 1.5%
Flammability, UL94 V-0
Operating Temperature -40 ~ +90 °C

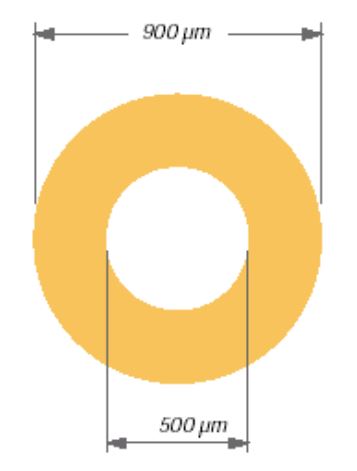

Model Description Outer Diameter Inner Diameter Color Price(USD) Quantity
0 T009VHWT UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Natural -
1 T009VHYW UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Yellow -
2 T009VHOR UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Orange -
3 T009VHGN UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Green -
4 T009VHVT UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Violet -
5 T009VHLB UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Light Blue -
6 T009VHBU UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Blue -
7 T009VHRD UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Red -
8 T009VHBK UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Black -
9 T009VHGY UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Gray -
10 T009VHBK UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Pink -
11 T009VHBR UL94 V-0 Grade Hytrel Tubing 900 ± 50 um 500 ± 50 um Brown -
