Product name : Pull-able Mansion’s Vertical Backbone Optical Cables
Description :

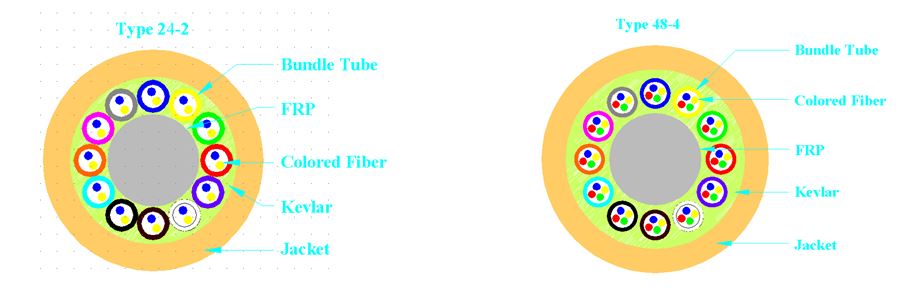

These cables incorporate several stranded all dry bundle tubes, these are composed of high density fiber count, with FRP for central strength member and enhanced by high tensile strength Kevlar. Each bundle tube can be easily and independently pulled out to terminate. They have high performance in mansion’s vertical backbone up to FTTH network.
Features
● High density, small diameter and light weight to achieve cost advantages over conventional cabling system.
● High performance in mansion’s vertical backbone cabling up to FTTH network, and cost saving than air blown optical fiber units.
● Each bundle tube can be easily pulled out to terminate into floor’s terminal box.
● All dry cord can be easily terminated without chemically clean task.
● Using FRP for central strength member and enhancing Kevlar to provide high tensile strength and all dielectric structure free of EMI & Thunder and Lighting.
Application
● 10GBASE-SR/SW
● 10GBASE-LX4
● IEEE 802.3 FOIRL
● IEEE 802.3 10BASE-F
● IEEE 802.3 1000BASE-SX/LX
● FDDI
● ATM
● Fiber Channel FC-PH
● SM fiber complied with ITU-T standard G652D, G657A,..etc.
● Meet the National Electrical Code (NEC article 770) and Telcordia GR-409-CORE standard.
More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw
Fiber Specification
| Fiber Type (µm) | 9/125 |
| Core Diameter (µm) | 8.3 |
| Mode Field Diameter (µm) | 9.2±0.4@1310nm |
| 10.4±0.5@1550nm | |
| Cladding Diameter (µm) | 125±1 |
| Coating Diameter (µm) | 245±15 |
| Coloring Diameters (µm) | 250±15 |
| Core Clad Concentricity(µm) | ≤0.5 |
| Cladding Non-Circularity(%) | ≤1.0 |
| Cable Cutoff Wavelength | l≤1260nm |
| Numerical Aperture | 0.13 |
| Tensile proof test (Kpsi) | 100 |
Bundle Loose Tube Specification
| Type | Bundle Tube Count | Bundle Tube Diameter, mm | Bundle Tube Thickness, mm |
|---|---|---|---|
| 12-2 | 6 | 1.0 ± 0.1 | 0.13 ± 0.05 |
| 24-2 | 12 | 1.0 ± 0.1 | 0.13 ± 0.05 |
| 24-4 | 6 | 1.1 ± 0.1 | 0.13 ± 0.05 |
| 48-4 | 12 | 1.1 ± 0.1 | 0.13 ± 0.05 |
| 24-6 | 4 | 1.2 ± 0.1 | 0.13 ± 0.05 |
| 48-6 | 8 | 1.2 ± 0.1 | 0.13 ± 0.05 |
| 48-12 | 4 | 1.5 ± 0.1 | 0.13 ± 0.05 |
| 96-12 | 8 | 1.5 ± 0.1 | 0.13 ± 0.05 |
| 144-12 | 12 | 1.5 ± 0.1 | 0.13 ± 0.05 |
Fiber & Bundle Tube Colored Sequence
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Yellow | Green | Red | Violet | White | Brown | Black | Aqua | Orange | Pink | Slate |
Cable Specification
| Fiber Count | Type | Cable Outside Diameter, mm | Cable Sheath Thickness, mm | Cable Nominal Weight, kg/km | |||
|---|---|---|---|---|---|---|---|
| 12 Fibers | 12-2 | ≦ 5.5 | 0.8 ± 0.2 | 24 | |||
| 24 Fibers | 24-2 | ≦ 7.1 | 0.8 ± 0.2 | 45 | |||
| 24 Fibers | 24-4 | ≦ 5.7 | 0.8 ± 0.2 | 24 | |||
| 48 Fibers | 48-4 | ≦ 7.7 | 0.8 ± 0.2 | 45 | |||
| 24 Fibers | 24-6 | ≦ 6.0 | 0.8 ± 0.2 | 26 | |||
| 48 Fibers | 48-6 | ≦ 6.7 | 0.8 ± 0.2 | 40 | |||
| 48 Fibers | 48-12 | ≦ 7.0 | 0.8 ± 0.2 | 28 | |||
| 96 Fibers | 96-12 | ≦ 7.9 | 0.8 ± 0.2 | 46 | |||
| 144 Fibers | 144-12 | ≦ 9.8 | 0.8 ± 0.2 | 74 | |||
| Optical Property | |||||||
| Maximum Attenuation (dB/km) | 0.4(1310nm)/0.35(1550nm) | Typical Attenuation (dB/km) | 0.4(1310nm)/0.3(1550nm) | ||||
Mechanical Properties
| Standard | ||
| Maximum Tensile Load - Loaded (N) | 1350N(12~48C)/1600N(above 48C) | IEC 60794-1-2 E1 |
| Maximum Tensile Load - Unloaded (N) | 900 N | |
| Min. bend radius installed (mm) | 10 x cable O.D. | IEC 60794-1-2 E11 |
| Min. bend radius long term (mm) | 20 x cable O.D. | |
| Storage Temperature | -20 ℃ to + 70 ℃ | IEC 60794-1-2 F1 |
| Operating Temperature | -20 ℃ to + 70 ℃ | |
| Model | Description | Type | Bundle Tube Count | Fiber Count | Price(USD) | Quantity | |
|---|---|---|---|---|---|---|---|
| 0 | DB9012-06LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 12-2 | 6 | 12 Fibers | - | |
| 1 | DB9024-12LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 24-2 | 12 | 24 Fibers | - | |
| 2 | DB9024-06LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 24-4 | 6 | 24 Fibers | - | |
| 3 | DB9048-12LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 48-4 | 12 | 48 Fibers | - | |
| 4 | DB9024-04LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 24-6 | 4 | 24 Fibers | - | |
| 5 | DB9048-08LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 48-6 | 8 | 48 Fibers | - | |
| 6 | DB9048-04LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 48-12 | 4 | 48 Fibers | - | |
| 7 | DB9096-08LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 96-12 | 8 | 96 Fibers | - | |
| 8 | DB9144-12LWT | Pull-able Mansion's Vertical Backbone Optical Cables | 144-12 | 12 | 144 Fibers | - |
