PT-006-Q-Y-A
Home
Product
Components for Laser Cutting and Marking
Beam Shapers
532nm
Elliptical Shape

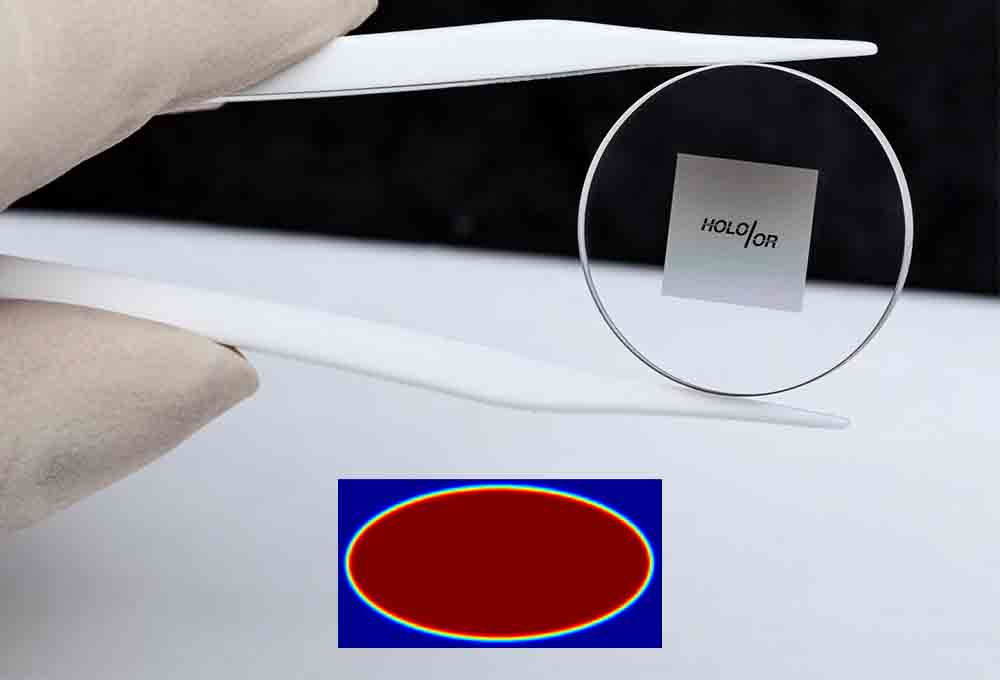

PT-006-Q-Y-A
PT-006-Q-Y-A
Model:
PT-006-Q-Y-A
Description:
● Very good uniformity
● High efficiency
● Sharp beam edge
● High power threshold
● Optional AR/AR coating
● Any output beam profile
● For wavelength 532nm used
Price(USD):
$0
Specification
Model No
PT-006-Q-Y-A
Wavelength (nm)
532
Beam Mode
Single Mode TEM00 with M2<1.5
Element Type
Windows
Material
Fused Silica
Required Beam Diameter (mm)
2
Image Shape
Elliptical
Full Angle at 1/e2 (mRad)
40.61x57.54
Image size (um) at EFL=100mm
4061.6x5755.6
Element Size (mm)
12.7
Thickness (mm)
2.54
Overall Efficiency
~ 95%
Coating
AR/AR Coating
