產品名稱 : 793nm - Output Power 4W to 140W
產品說明 :

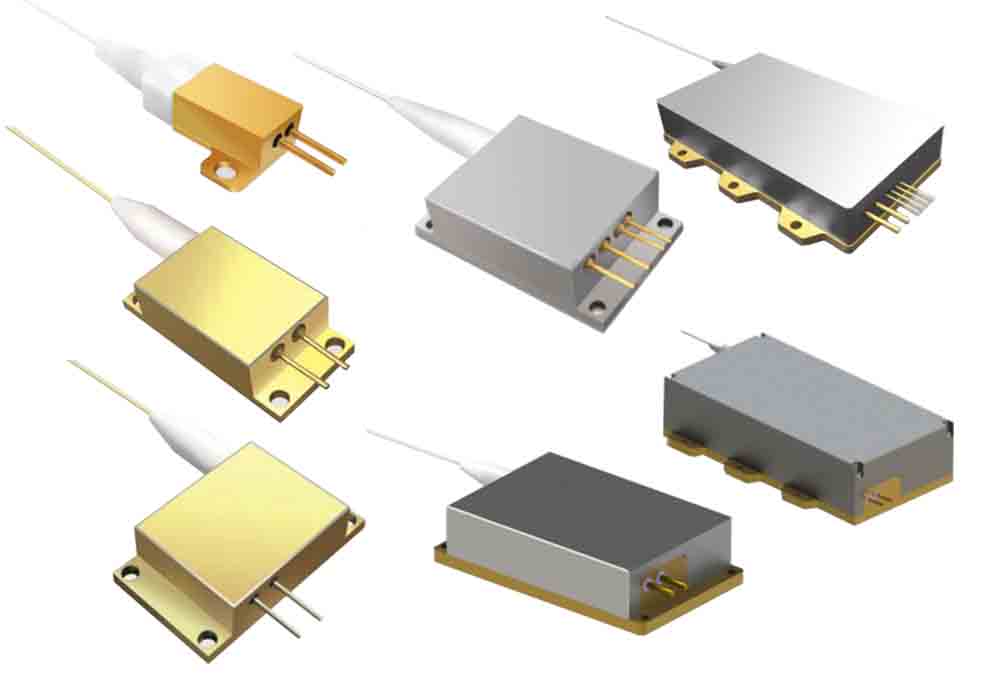

Single Emitter Diode Laser
Mainly used in the area of fiber laser pumping ,computer to plate(CTP), DPSS laser pumping, medical use, aiming beam, industry,etc. For different application, varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available.
Multi-Single Emitter Diode Laser
Multiple single emitter diode lasers build upon the foundation of multi-emitter coupling technology, to obtain high power and high brightness diode laser. Varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available. Multi single emitter diode lasers have great advantages in high reliability and high performance. In multi-single emitter diode laser, BWT have patented many improved optical designs. And these compact packages and commercially recognized formats allow easy integration into the existing products.
Selection Guide
Single Emitter
| Model | Wavelength | Power | Fiber |
|---|---|---|---|
| K793DB2RN-4.000W | 793nm | 4W | 105μm/0.22 |
Multi-Single Emitter
| Model | Wavelength | Power | Fiber |
|---|---|---|---|
| K793DA2RN-8.000W | 793nm | 8W | 105μm/0.22 |
| K793DA3RN-12.00W | 793nm | 12W | 105μm/0.22 |
| K793DAERN-16.00W | 793nm | 16W | 105μm/0.22 |
| K793DN0RN-30.00W | 793nm | 30W | 105μm/0.22 |
| K793DG5RN-50.00W | 793nm | 50W | 105μm/0.22 |
| K793DN2RN-80.00W | 793nm | 80W | 200μm/0.22 |
| K793DN2RN-140.0W | 793nm | 140W | 200μm/0.22 |
| 產品型號 | 產品說明 | 價格(NTD) | 產品數量 | |
|---|---|---|---|---|
| 0 | K793DB2RN-4.000W | Single Emitter, 793nm, 4W Fiber Coupled Diode Laser | - | |
| 1 | K793DA2RN-8.000W | Multi-Single Emitter, 793nm, 8W Fiber Coupled Diode Laser | - | |
| 2 | K793DA3RN-12.00W | Multi-Single Emitter, 793nm, 12W Fiber Coupled Diode Laser | - | |
| 3 | K793DAERN-16.00W | Multi-Single Emitter, 793nm, 16W Fiber Coupled Diode Laser | - | |
| 4 | K793DN0RN-30.00W | Multi-Single Emitter, 793nm, 30W Fiber Coupled Diode Laser | - | |
| 5 | K793DG5RN-50.00W | Multi-Single Emitter, 793nm, 50W Fiber Coupled Diode Laser | - | |
| 6 | K793DN2RN-80.00W | Multi-Single Emitter, 793nm, 80W Fiber Coupled Diode Laser | - | |
| 7 | K793DN2RN-140.0W | Multi-Single Emitter, 793nm, 140W High Power Fiber Coupled Diode Laser | - |
