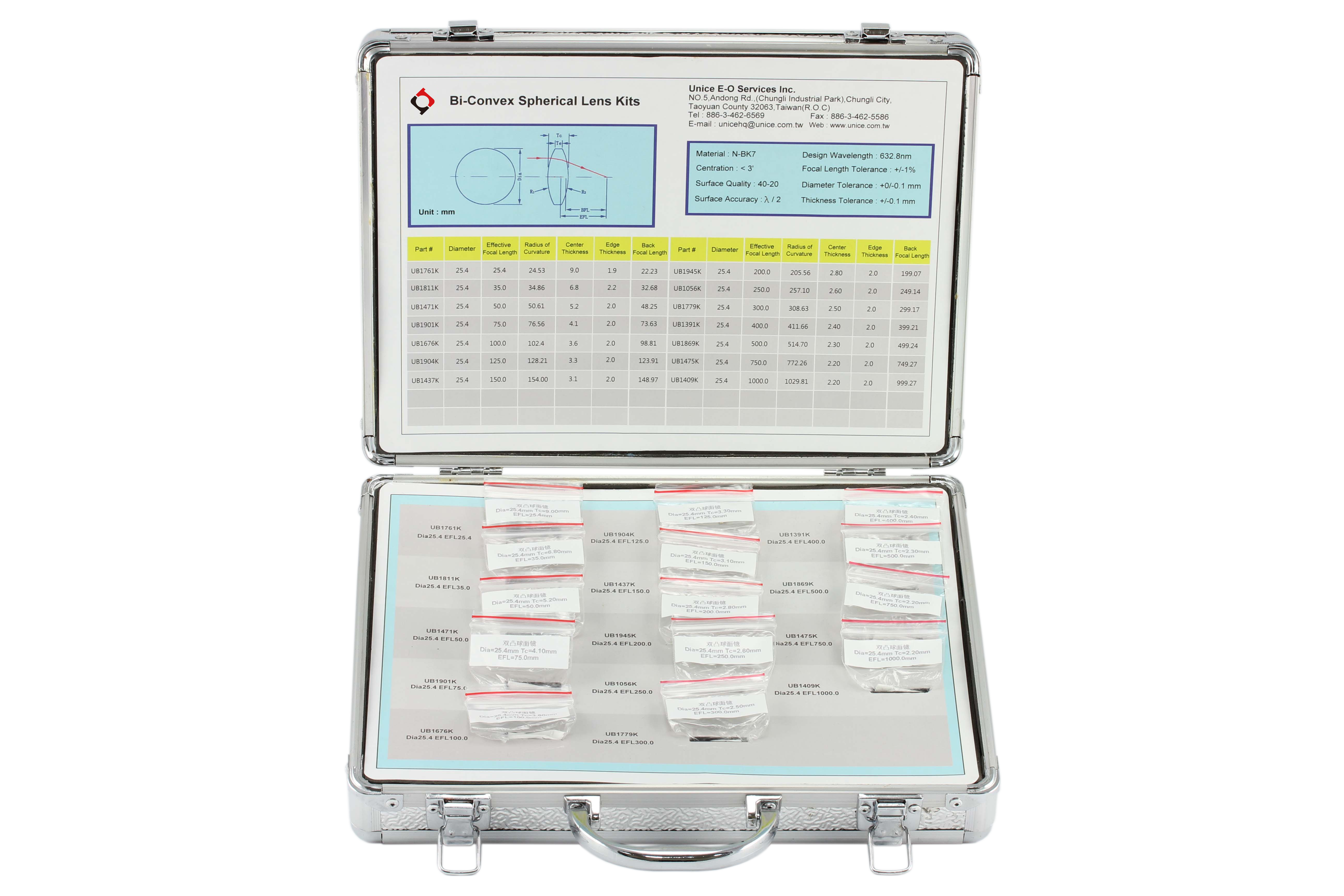

DXLK-1 N-BK7 Bi-Convex Singlet Lens Kit, Diameter 25.4mm, Uncoated

DXLK-1

Model：DXLK-1
Description：

Price(USD)：$585

Content

DXLK-1 Included :

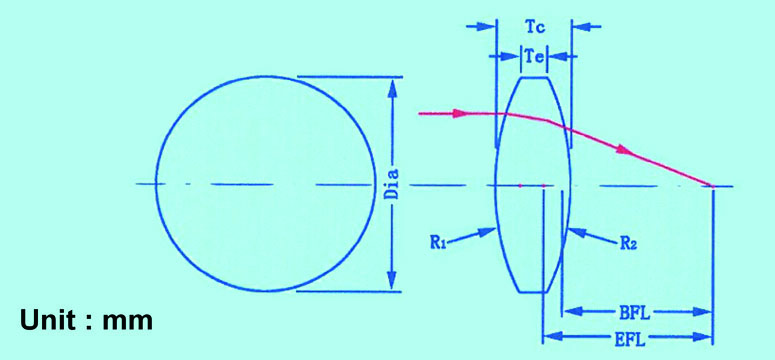

Part#	Diameter (mm)	Effective Focal Length (mm)	Radius Of Curvature (mm)	Center Thickness (mm)	Edge Thickness (mm)	Back Focal Length (mm)
UB1761K	25.4	25.4	24.53	9	1.9	22.23
UB1811K	25.4	35	34.86	6.8	2.2	32.68
UB1471K	25.4	50	50.61	5.2	2	48.25
UB1901K	25.4	75	76.56	4.1	2	73.63
UB1676K	25.4	100	102.4	3.6	2	98.81
UB1904K	25.4	125	128.21	3.3	2	123.91
UB1437K	25.4	150	154	3.1	2	148.97
UB1945K	25.4	200	205.56	2.8	2	199.07
UB1056K	25.4	250	257.1	2.6	2	249.14
UB1779K	25.4	300	308.63	2.5	2	299.17
UB1391k	25.4	400	411.66	2.4	2	399.21
UB1869K	25.4	500	514.7	2.3	2	499.24
UB1475K	25.4	750	772.26	2.2	2	749.27
UB1409K	25.4	1000	1029.81	2.2	2	999.27
