Commercial Grade Right Angle Prisms
Commercial Grade Right Angle Prisms
Product name : Commercial Grade Right Angle Prisms
Description :
Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Our UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.
Specification
| Material | UV Grade Fused Silica or N-BK7 |
| Diameter Tolerance | ±0.1mm |
| Surface Accuracy | λ/10@632.8nm |
| Surface Quality | 40-20 |
| Angular Tolerance | ± 3 arc min |
| Clear Aperture | >90% |
| Bevelling | <0.2x45∘ |
| Coating | Custom Design |
 |
|

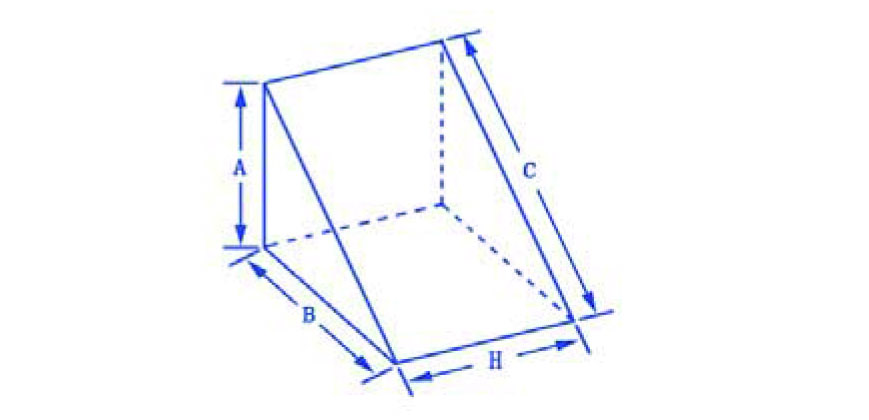

| Model | Description | Material | Dimension (A=B) mm | Dimension (C) mm | Price(USD) | Quantity | |
|---|---|---|---|---|---|---|---|
| 0 | UL605FS | Right Angle Prism | Fused Silica | 3 | 4.24 | - | |
| 1 | UL609FS | Right Angle Prism | Fused Silica | 5 | 7.07 | - | |
| 2 | UL610FS | Right Angle Prism | Fused Silica | 10 | 14.14 | - | |
| 3 | UL608FS | Right Angle Prism | Fused Silica | 20 | 28.28 | - | |
| 4 | UL611FS | Right Angle Prism | Fused Silica | 25 | 35.35 | - | |
| 5 | UL612FS | Right Angle Prism | Fused Silica | 40 | 65.57 | - | |
| 6 | UL613FS | Right Angle Prism | Fused Silica | 60 | 84.85 | - | |
| 7 | UL905K | Right Angle Prism | N-BK7 | 3 | 4.24 | - | |
| 8 | UL909K | Right Angle Prism | N-BK7 | 5 | 7.07 | - | |
| 9 | UL910K | Right Angle Prism | N-BK7 | 10 | 14.14 | - | |
| 10 | UL908K | Right Angle Prism | N-BK7 | 20 | 28.28 | - | |
| 11 | UL911K | Right Angle Prism | N-BK7 | 25 | 35.35 | - | |
| 12 | UL912K | Right Angle Prism | N-BK7 | 40 | 56.57 | - | |
| 13 | UL913K | Right Angle Prism | N-BK7 | 60 | 84.85 | - |
